Oxygen S-Cross MTB MK2 16AH
New
Year: 2023
£1,875.99
Electric bikesMountain bikes
Commuter bikes
Hard tail mountain bikes
The High Spec S-Cross MTB MKII has been designed with a discreet in frame 36v battery which comes with the option of 3 battery sizes (10.4ah, 13ah or 16ah), a new mounted backlit LCD display with 6 power assist levels, a 250w high torque motor, 27 speed gearing and hydraulic disc brakes.

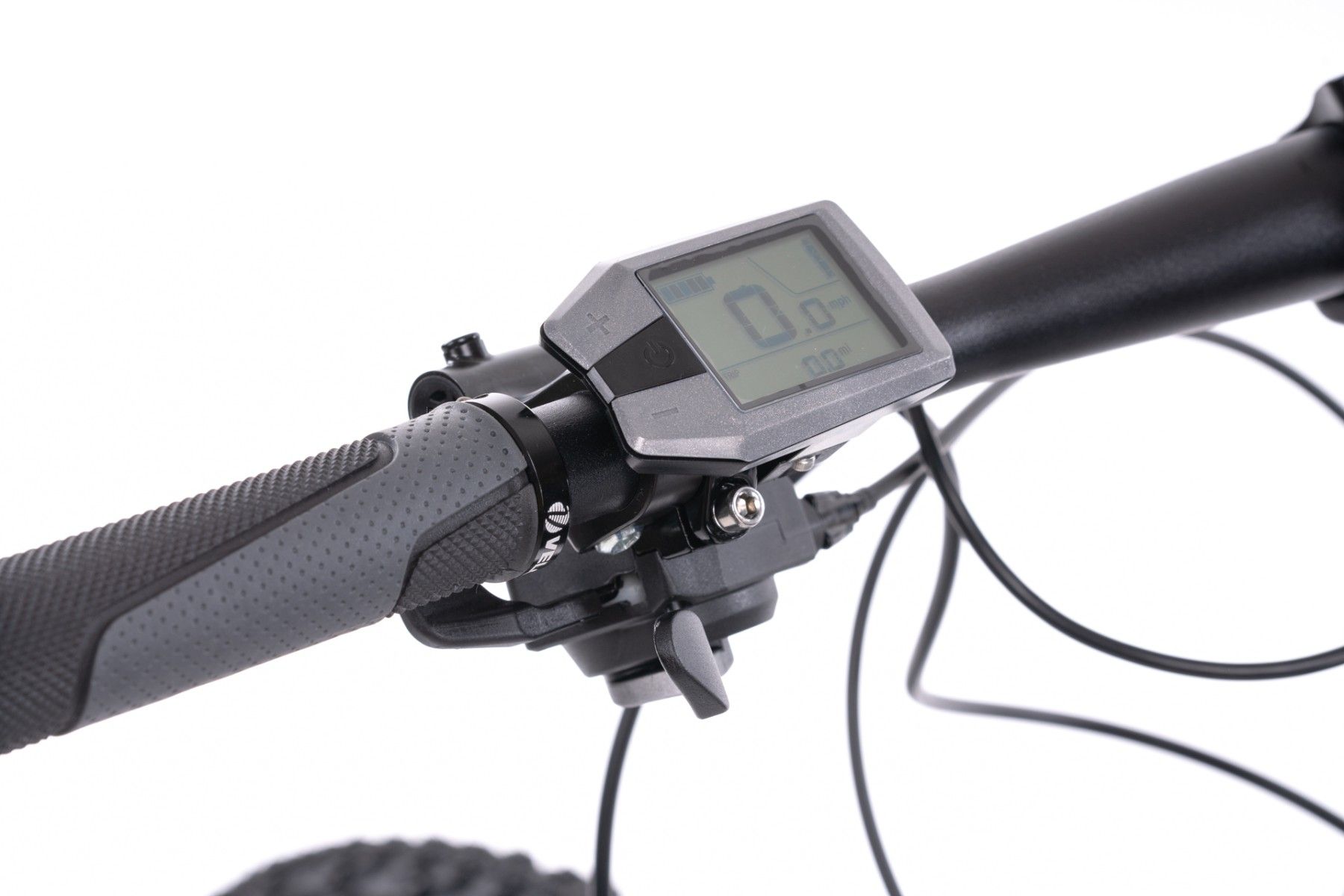

LCD CONSOLE
The S-Cross MTB features a new easy to read LCD Backlit display
ALPHA ALLOY FRAME
Alpha 6061 T4/T6 is the technology which ensures the frames for our Oxygen Electric Bikes are superlight, strong and rigid.
All of our frames are made of alloy mix containing a mix of aluminium 6061 and magnesium. The 6061 alloy delivers a super lightweight frame with maximum strength which is crucial to achieve reliability. Additionally every frame is hand welded and inspected to ensure the highest quality on all of our bikes.
HIGH TORQUE REAR MOTOR
The S-Cross MTB is fitted with a powerful high torque motor for smooth power delivery and great hill climbing ability.
Full Specifications
FRAMESET
| Size | 19″ |
| Frame | AI 6061 T4&T6 |
| Front Suspension | SR SUNTOUR XCM |
ELECTRIC DRIVE
| Motor | 36V 250w High Torque Shengyi DGWX2C |

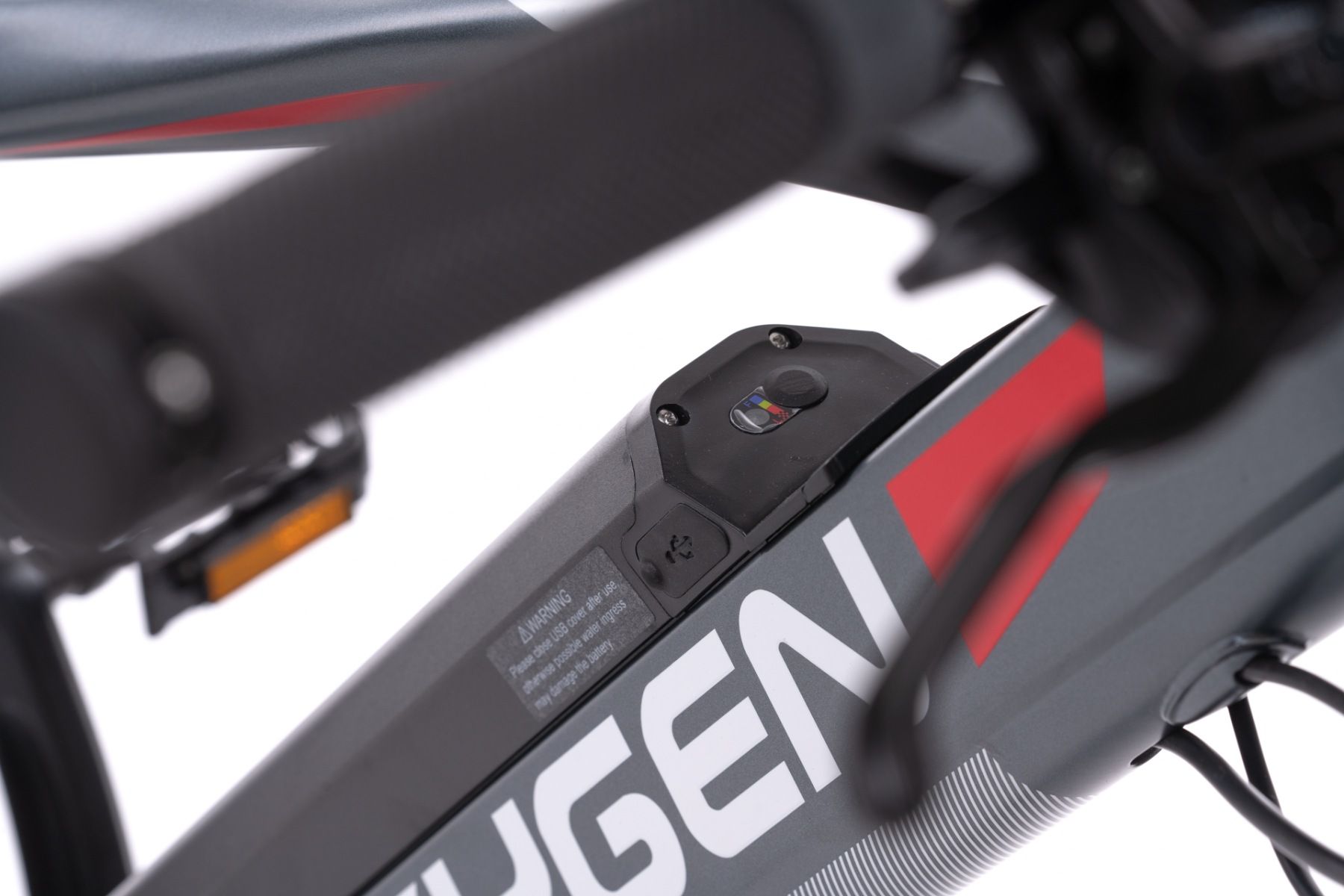

| Battery | 36v 10.4Ah / 36V 13Ah / 36v 16Ah LG Cells |
| Controller | OXYGEN Cloud Drive |
| Throttle | NOT SUPPORTED |
| Pedal Assist | Variable assist level (0-6) |
| Charger | Anglie 42V 2A |
| Display | OXYGEN KDS-717 |
PERFORMANCE
| Range | 10.4ah: Up to 30 miles 13ah: Up to 50 miles 16ah: Up to 70 miles |
| Max Speed | 15.4mph dependent on terrain |
| Max Power | 250W (peak 576W) |
| Weight | 23.3Kg inc Battery |
| Max Payload | 120Kg |
WHEELS
| Rims | OXYGEN – Remerx 584X18 BA+SEE, 36H, AV |
| Spokes | 14G – 2 / 270 – 310 black, resin |
| Hubs | FORMULA DC |
| Tyres | SCHWALBE SMART SAM |
DRIVETRAIN
| Shifter | SHIFT LEVER, MARVO XPRESS, REAR 9-SPEED RAPIDFIRE SHIFT LEVER, MARVO XPRESS, LEFT, FRONT 3-SPEED RAPIDFIRE |
| Rear Derailleur | REAR DERAILLEUR, RD-M2000, ALTUS,SGS 9-SPEED, |
| Chain | KMC 1/2″ x 11/128″ 9-SPEED |
| Crank | Prowheel Burner 175mm 42-34-24T |
| Cassette | S-RIDE 11-36T, 9-SPEED |
COMPONENTS
| Saddle | Selle Royal Gel Saddle |
| Seat Post | Lightweight Alloy 30.9mm |
| Handlebars | Promax HB-3018 |
| Stem | Promax MA-47 28.6/31.8/90mm |
| Headset | Promax Integrated |

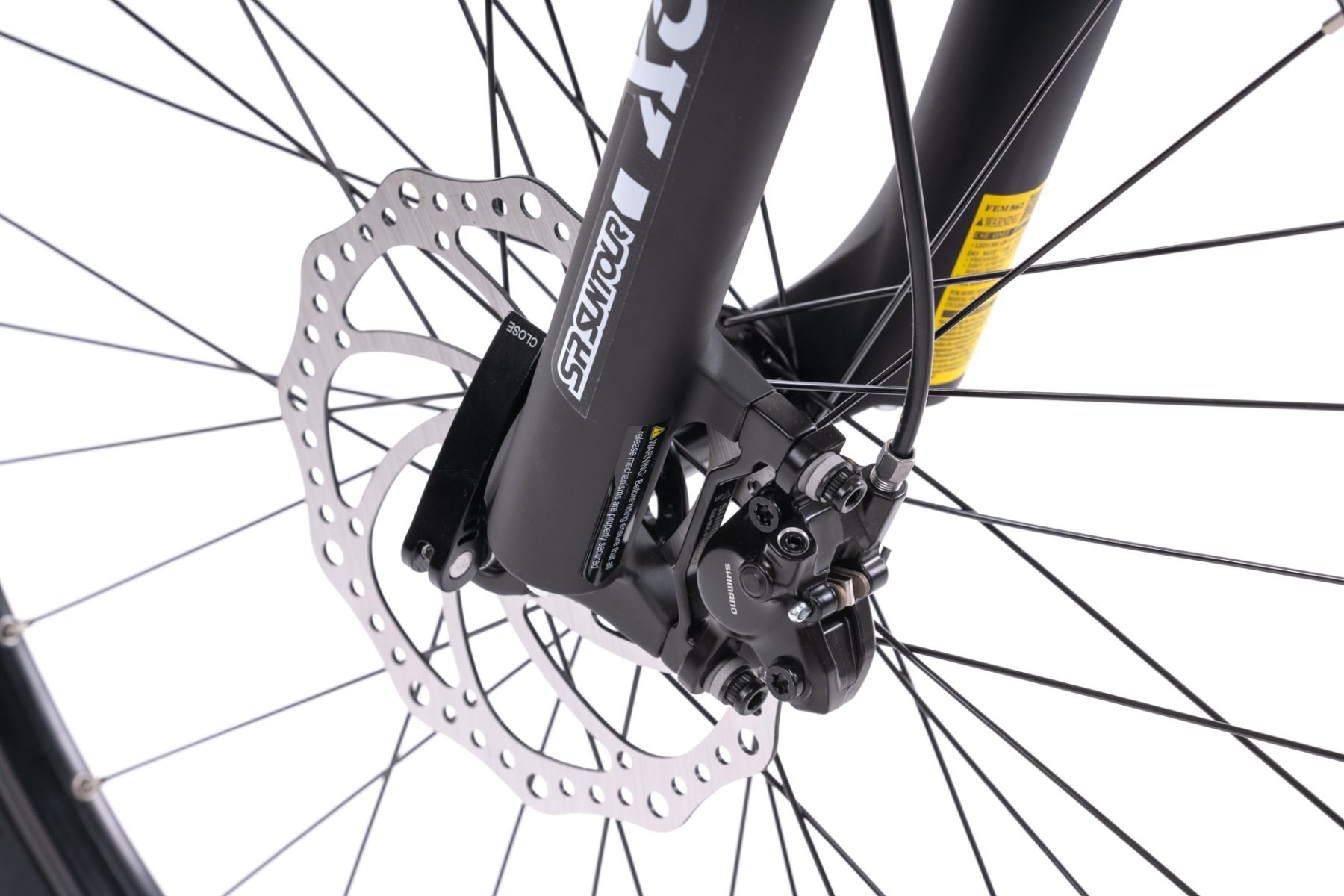

| Brakes | SHIMANO HYDRAULIC MT200 |
