Oxygen 2023 S-Cross ST MK2
New
Year: 2023
£1,649.99
Electric bikesHybrid bikes
Commuter bikes
The S-Cross ST Commuter/trekking bike has been designed with a discrete in frame 36v battery which comes with the option of 3 battery sizes (10.4ah, 13ah or 16ah), a new centrally mounted backlit LCD display with 6 power assist levels and the further option of 3 power modes, a handlebar mounted USB port for charging mobile devices from the bikes battery, a powerful 250w motor, 24 speed Microshift gearing, Shimano hydraulic disc brakes, front and rear mudguards, pannier rack, front and rear lights and comes in the option of a matt black or matt red finish.
LCD CONSOLE
The S-Cross ST MKII features a new easy to read centrally mounted LCD Backlit display with a handlebar mounted USB port to charge your devices while on the move.
ALPHA ALLOY FRAME
Alpha 6061 T4/T6 is the frame technology which delivers the superlight and rigid frames for our Oxygen Electric Bikes.
All of our frames are made of alloy mix containing a mix of aluminium 6061 and magnesium. The 6061 alloy delivers a super lightweight frame with maximum strength which is crucial to achieve reliability. Additionally every frame is hand welded to ensure the highest quality.
HIGH TORQUE REAR MOTOR
The S-Cross ST MKII uses a powerful 250W High torque motor for smooth, reliable power delivery and great hill climbing ability.
Full Specifications
FRAMESET
Size | 17″ |
Frame | AI 6061 T4&T6 |
Front Suspension | SR Suntour NEX NLO DS 700C |
Rear Rack | Super Carrier – Alloy 25kg |
ELECTRIC DRIVE
Motor | 36V 250W Shengyi DGWH2C |
Battery | 36v 10.4Ah / 36V 13Ah / 36v 16Ah LG Cells |
Controller | OXYGEN Cloud Drive |
Throttle | NOT SUPPORTED |
Pedal Assist | Variable assist level (0-6) |
Charger | Anglie 42V 2A |
PERFORMANCE
Range | 10.4ah: Up to 30 miles 13ah: Up to 50 miles 16ah: Up to 70 miles |
Max Speed | 15.5mph/15mph dependent on terrain |
Max Power | 250W (peak 576W) |
Weight | 25.2Kg inc Battery |
Max Payload | 120Kg + 25kg luggage |
WHEELS
Rims | OXYGEN – Remerx 622X19 BA+SEE, 36H, AV |
Spokes | 14G – 2 / 270 – 310 black, resin |
Tyres | Mitas Sepia 42-622 |
DRIVETRAIN
Shifter | Microshift TS38-8 – 8 SPEED Microshift TS-38 – 3 SPEED |
Rear Derailleur | Microshift RD-M36L – 8 SPEED |
Chain | KMC 1/2 x 3/32″, single link (roller) |
Crank | Prowheel TY-CN02 28-48T 175mm |
Cassette | Shimano CS-HG200-8 |
Pedals | Feimin FP-958 |
COMPONENTS

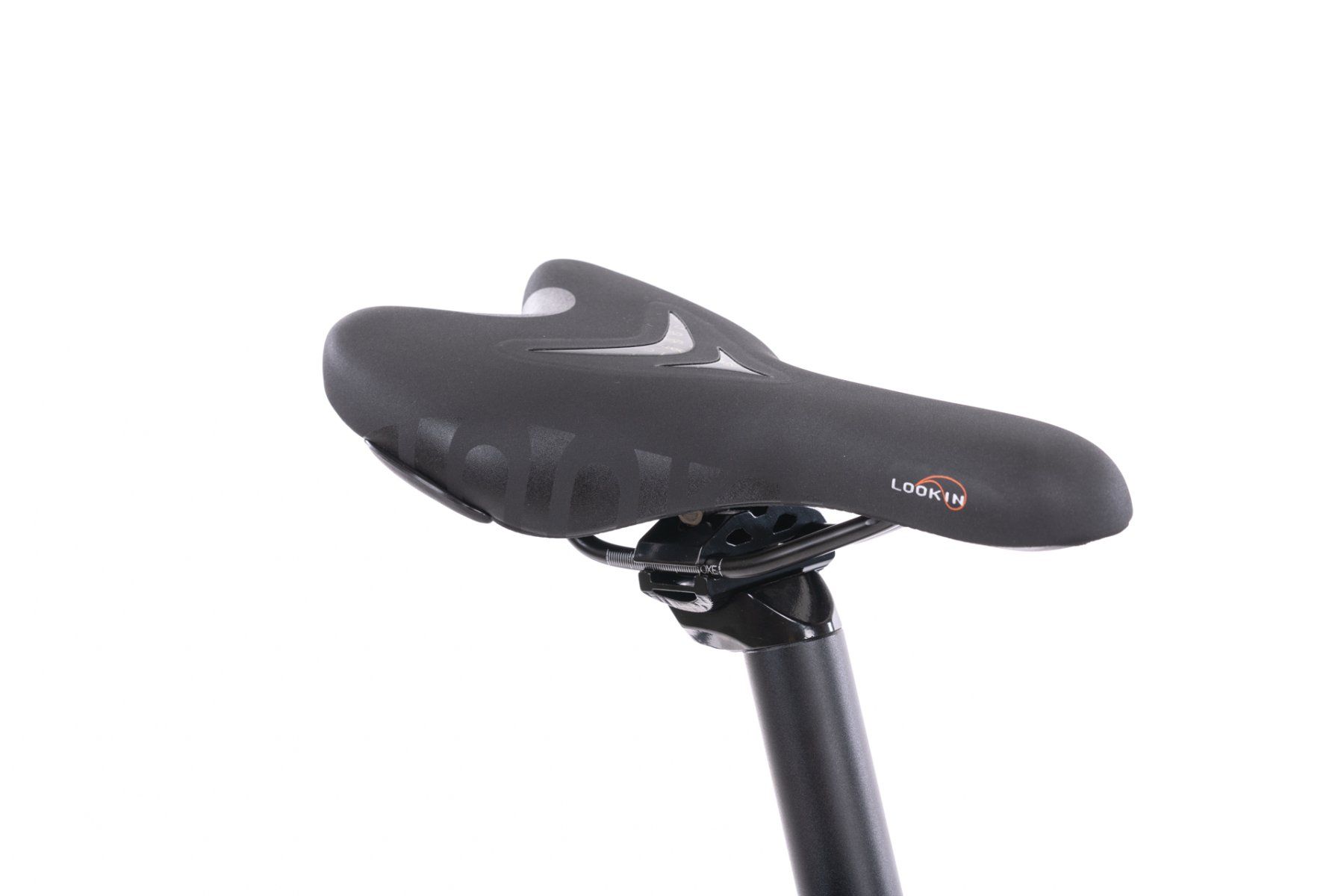

Saddle | Selle Royal |
Seat Post | Lightweight Alloy 30.9mm |
Handlebars | A-One Riser 31.8mm 640mm |
Stem | Promax 105mm adjustable |
Headset | Promax integrated |

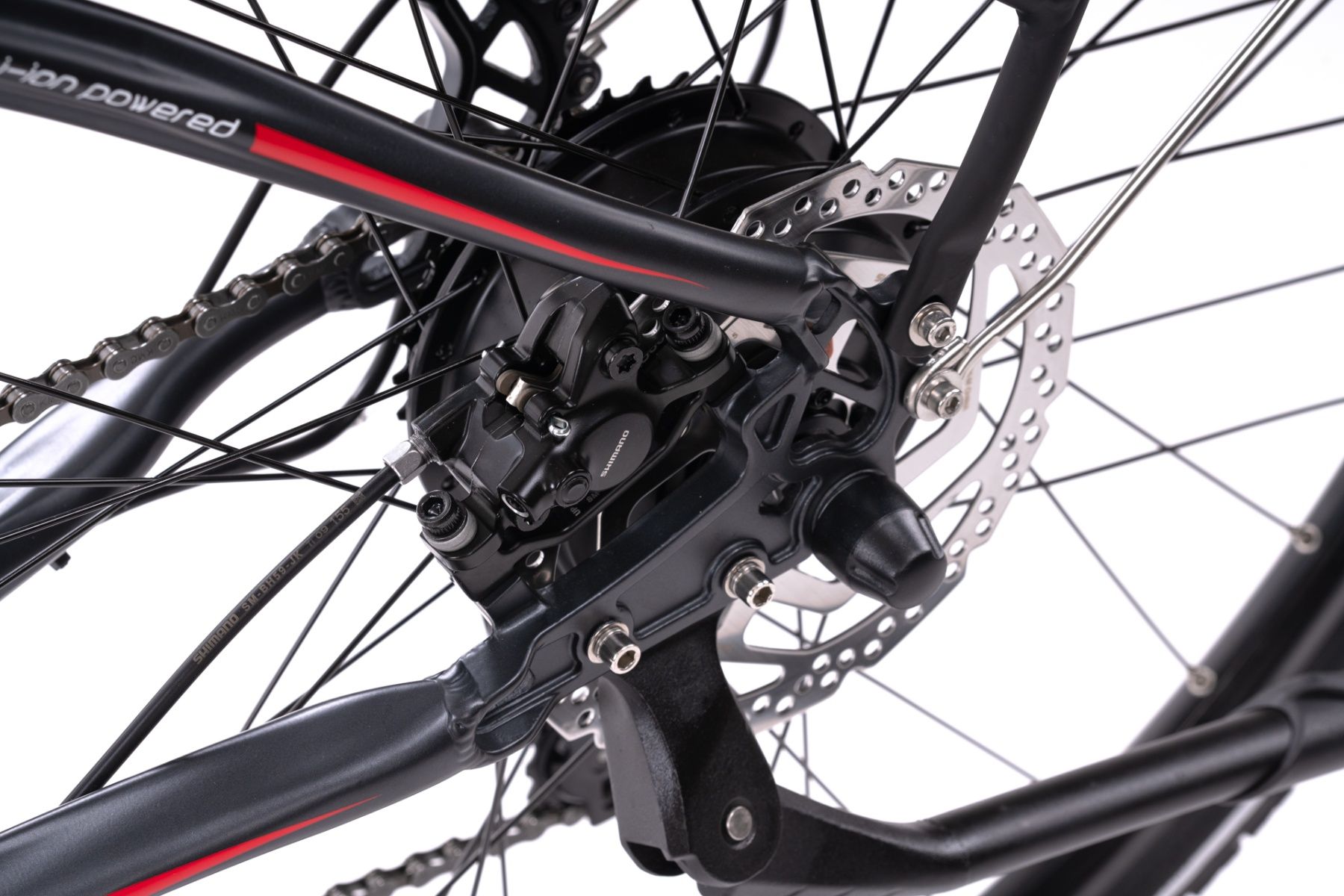

Brakes | Shimano Hydraulic Brakes |
