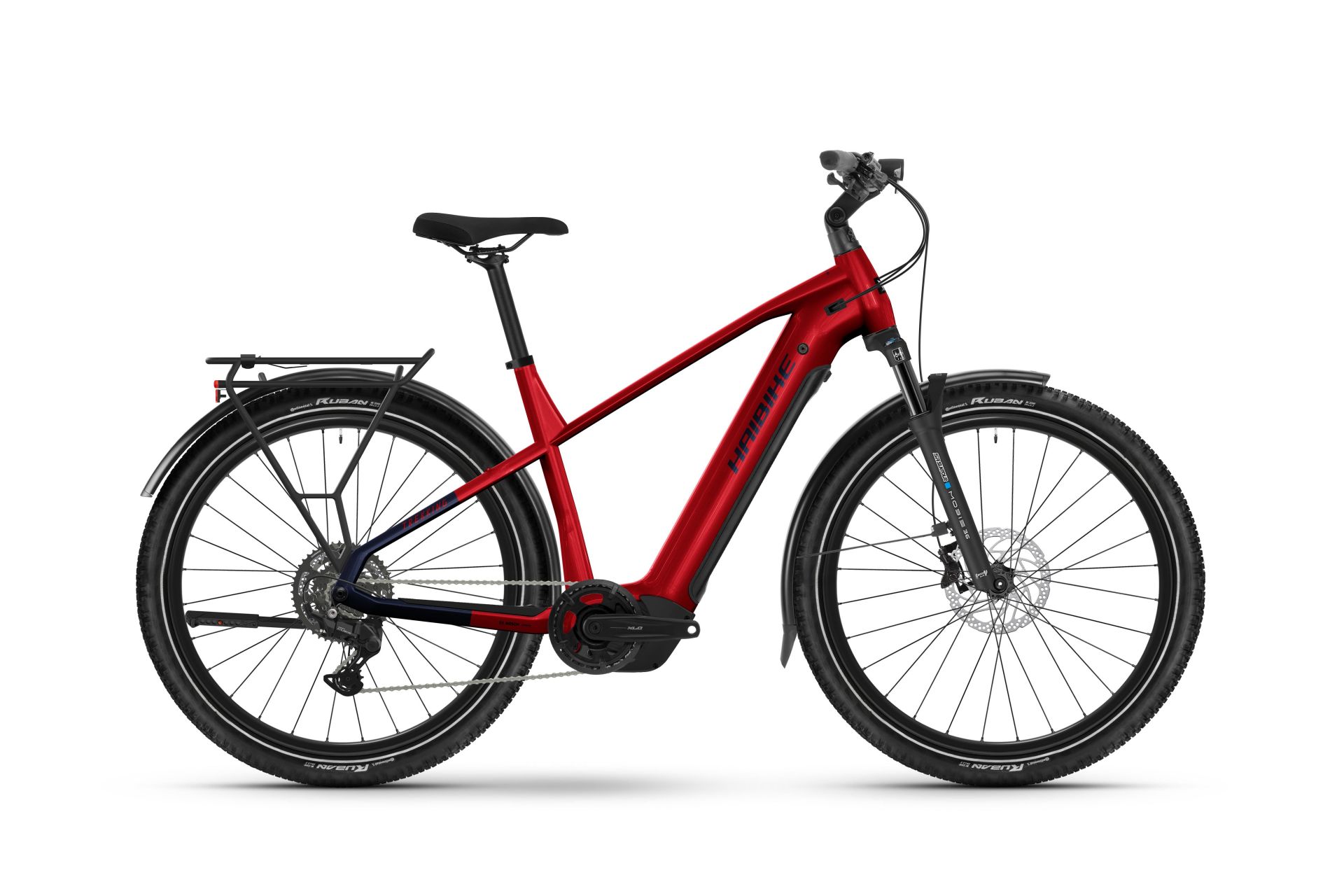

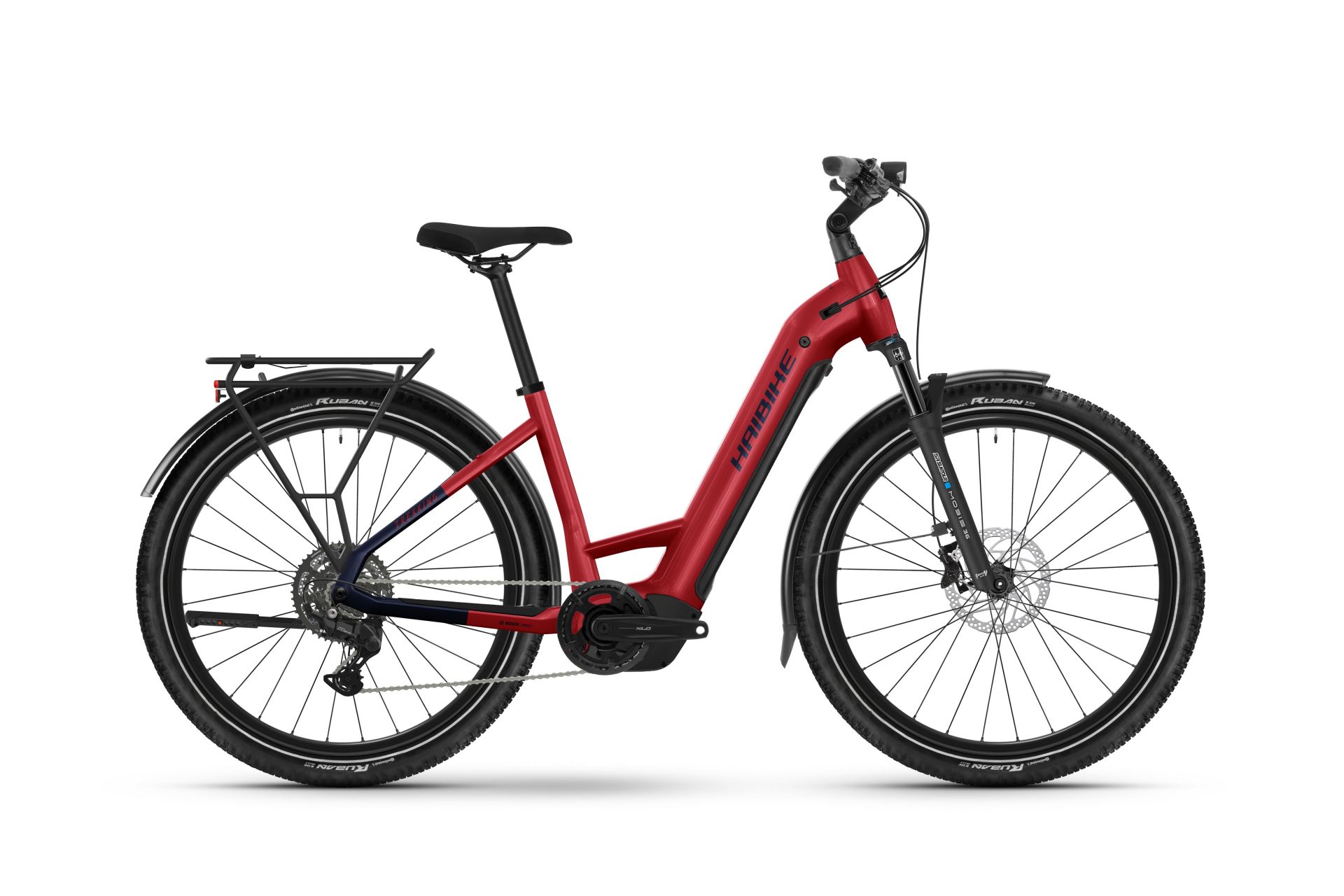

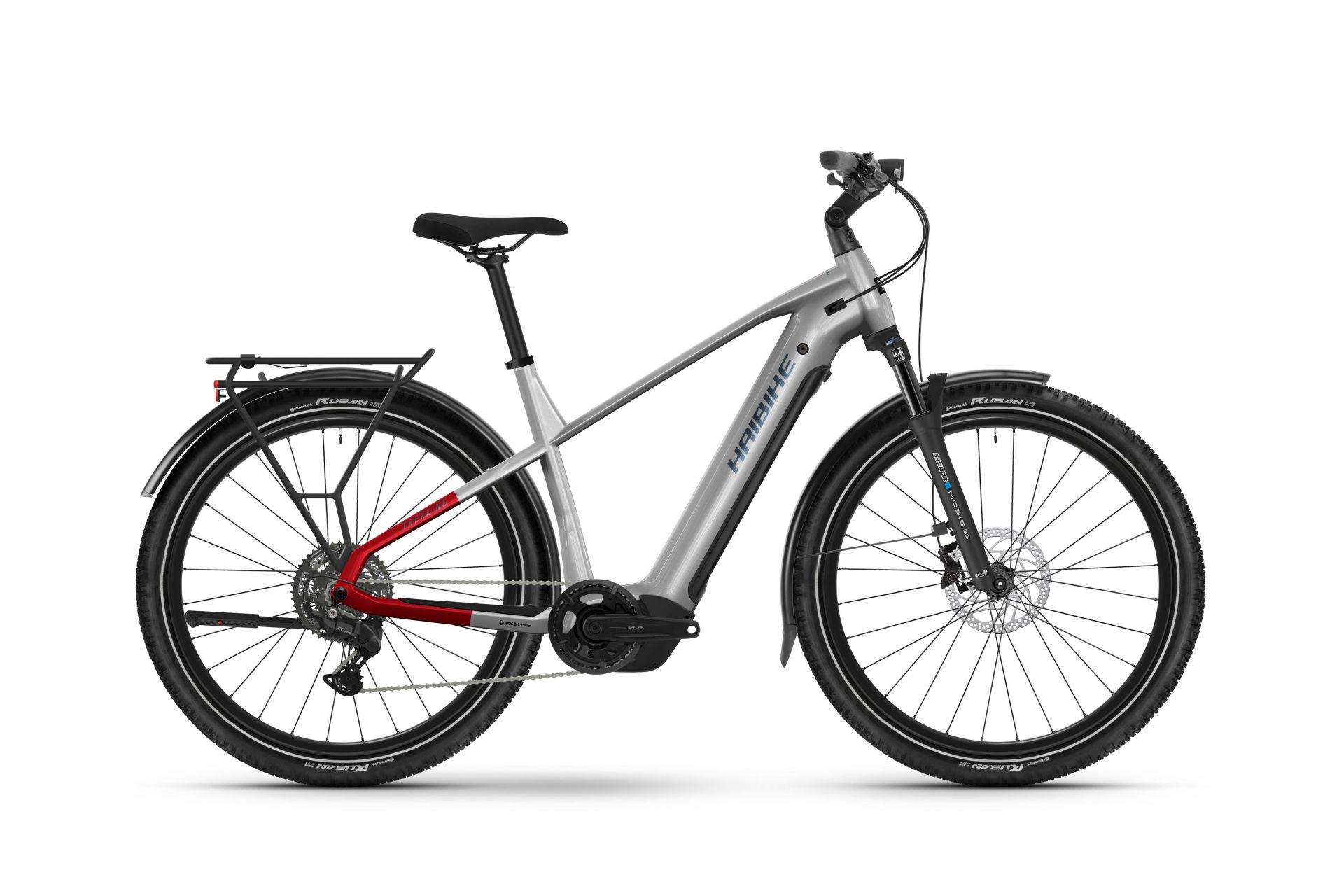

Haibike Trekking 7

With the TREKKING 7, the sky is the limit: Whether riding a sporty after-work loop in the forest, the daily commute to work or a multi-day tour with luggage - this high-quality Trekking eBike impresses with its versatility. The lightweight and powerful Yamaha PW-X3 motor offers you plenty of support with 85 Nm of torque. With the Shimano Deore XT 12-speed rear derailleur you will always find the right gear ratio. The 100 mm suspension fork from RockShox and robust 27.5" tyres round out the perfect equipment for moderate off-road use. The TREKKING 7 is available in the frame variants LOW and HIGH.



e-System

Battery

Yamaha

Battery brand

Yamaha

Charger

Yamaha Quick Charger 4A

E-bike system

Yamaha

Maximum support speed

25 km/h

Motor

Yamaha PW-X3 Series

Motor torque (nm)

85 Nm



Drive

Bottom Bracket

integrated in the motor

Cassette

Shimano M6100

Chain

Shimano Chain CN-M6100

Crankset

Miranda Kies

Derailleur Rear

Shimano Deore XT M8100 Shadow Plus

Frame

Low Aluminium Low entry

Frame material

Aluminium

Frame size

45 cm

Gear

Shimano Derailleur

Max permissible weight (Rider, Cargo and Bike)

150 kg

Number of gears

12

Shifter Right

Shimano Triggershift Deore M6100



Suspension

Front Fork

Rockshox Recon RL 100 mm



Components

Brake light

No

Brake Rear

Shimano Hydraulic Disc brake MT420

Front brake

Shimano Hydraulic Disc brake MT401

Front Light

Herrmans H-Black MR8 E

Handlebar

Ergoriser, oversize Dia. 31.8 mm

Maximum rear carrier weight

25 kg

Pedal

VP E461

Rear Light

Spanninga Aerline 2.0 Brake

Saddle

Selle Royal Essenza

Seatpost

Dropperpost



Wheelset

Rear wheel size

27.5

Rim

Schurmann Hollow rim Yak25

Tyre

Schwalbe Johnny Watts 60-584

Tyre size ETRTO

60-584
