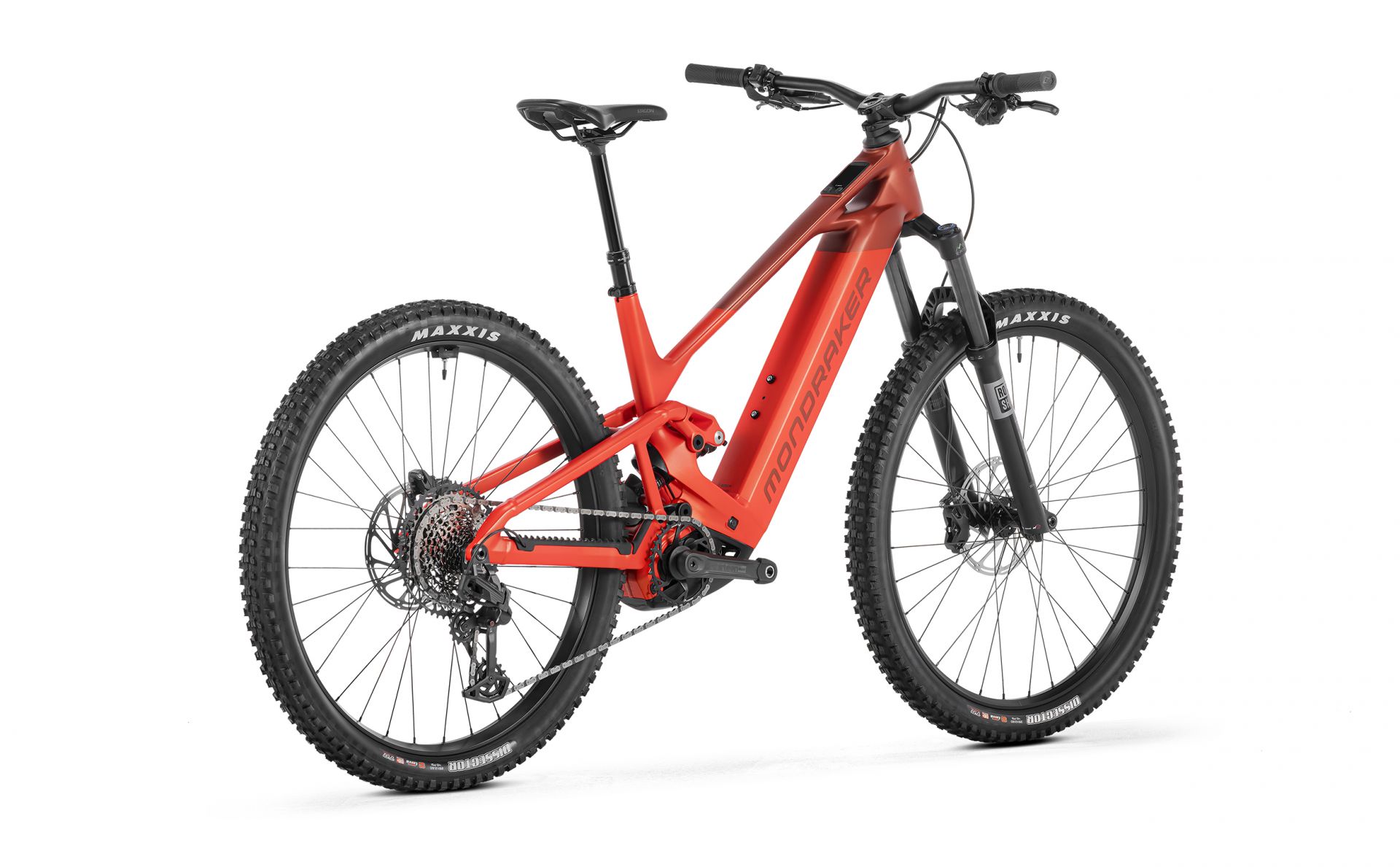

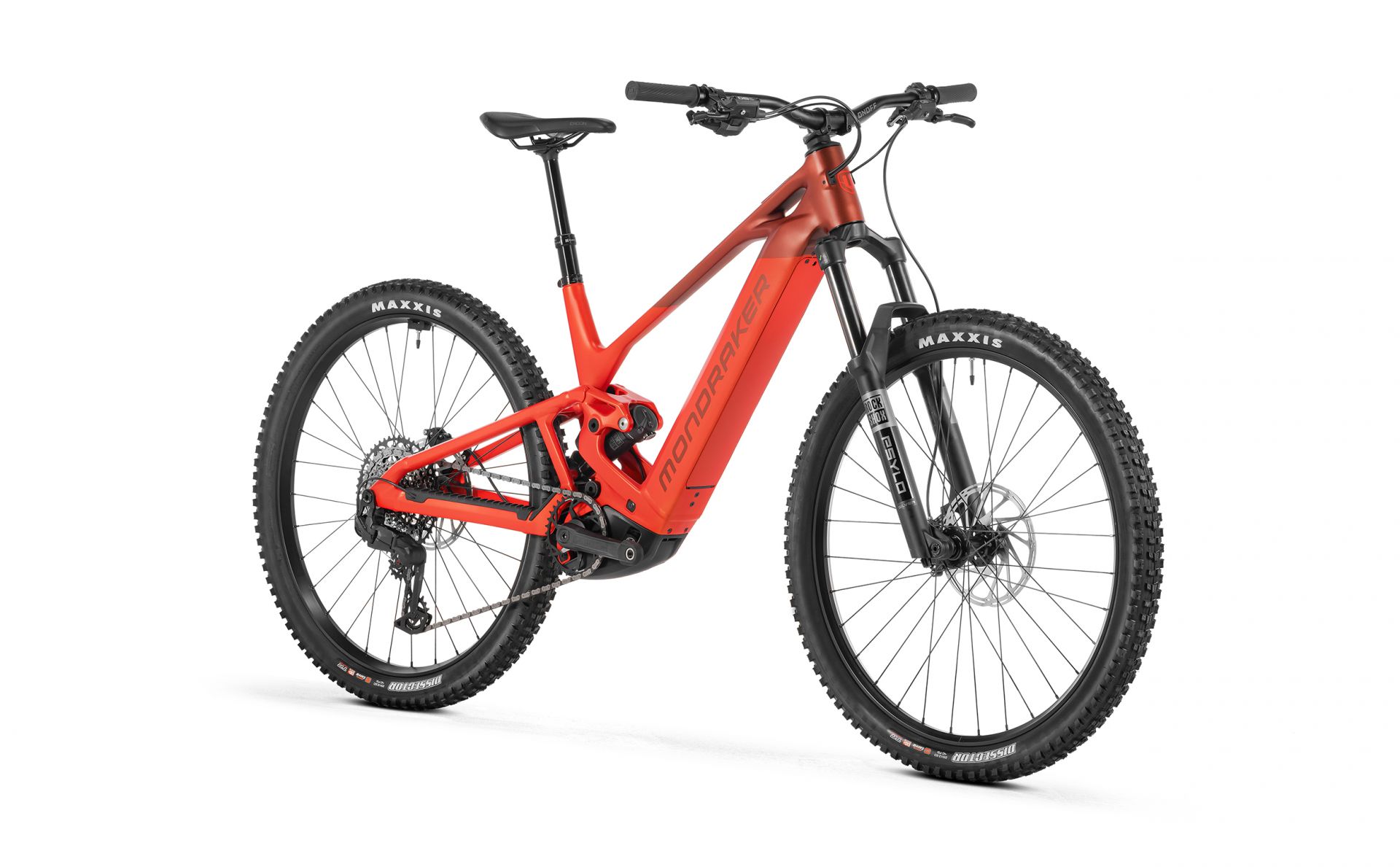

Mondraker Scree S Flame Red

Frame

SCREE 6061 Alloy Stealth Evo, Updated Zero Suspension System, 130mm travel, Forward Geometry, internal removable battery, Boost 12x148mm rear axle, UDH, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers.

Sizes

S: 380mm / M: 410mm / ML: 435mm / L: 460mm / XL: 490mm

Rear shock

RockShox Deluxe Select DebonAir, 165x45mm. Settings: Low-speed rebound, air preload. Trunnion top mount, 30x8mm bottom bushings

Shock settings

C37 compression, R85 rebound, 4 Tokens

Fork

RockShox Psylo Silver 29, 150mm, Motion control damper, Solo Air, tapered steerer tube, Boost 15x110mm axle, 35mm steel stanchions, 44mm offset. Settings: compression adjustment at low-speed to lock, rebound, air preload

Headset

Acros custom ZS56/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs without blocklock

Stem

Onoff S6 30mm 0º, 6061 forged alloy + CNC, 31.8mm barbore

Handlebar

Onoff S6 1.0 7050 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 38mm rise.

Grips

Onoff Desert Pro, CNC lock-on, 135mm. L and XL: Thicker size

Seatpost

X-Fusion Manic diameter 31.6mm,1X Remote lever, S size: 361x125mm, M size: 425x150mm, ML size: 469x170mm, L size: 521x190mm, XL size: 531x200

Saddle

Ergon SMC10 Gel

Front brake

Sram DB6, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads

Rear brake

Sram DB6, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads

Brake lever

Sram DB6, tool reach adjust, lever pivot bushings

Rims

WTB Sportterra Tough,6061 Welded Aluminum, 30mm internal width, tubeless ready, 28 spokes

Spokes

WTB Straight gauge spokes & black brass locking nipples

Front hub

WTB Frequenzy Sport Boost 15x110mm, fully machined aluminum, IS 6 bolts

Rear hub

WTB Frequenzy Sport Boost 12x148mm, fully machined aluminum, IS 6 bolts, HG freehub

Front tire

Maxxis Dissector 29x2.6, tubeless ready, tubeless ready, 3C MaxxTerra compoundm EXO+ protection, 60TPI, folding bead

Rear tire

Maxxis Dissector 29x2.6, tubeless ready, tubeless ready, 3C MaxxTerra compoundm EXO+ protection, 60TPI, folding bead

Crankset

E.13 Helix Core E*Spec Plus, All sizes: 160mm

Rings

Sram Eagle 34T T-Type, direct mount, steel, CL55

Chain

Sram 70 T-Type, 12s Flattop, PowerLock

Rear derrailleur

Sram 70 Eagle, T-Type, 12s

Shift levers

Sram Trigger 70, 12s, T-Type Actuation

Casette

Sram XS-1270, 10-52T, 12s

Weight

25,8 kg

Display

Kiox 400C / Bosch Mini Remote

Motor

Bosch Performance Line CX (25Km/h) SMART SYS
