Mondraker Crafty S Carbon

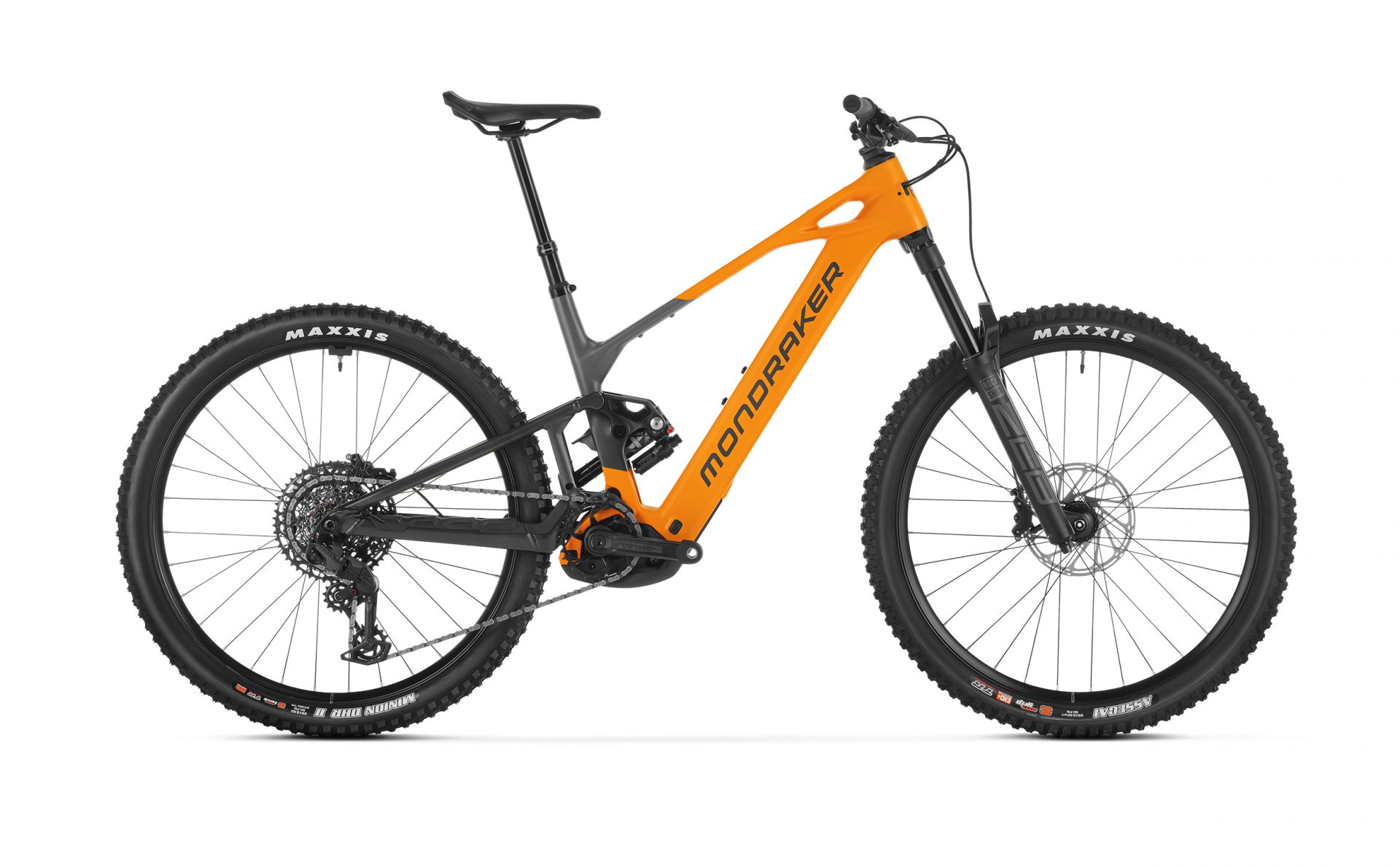

CRAFTY CARBON S Atomic Orange S

Detailed description

•

  Frame

  Crafty Stealth Air full Carbon front triangle, Stealth Alloy rear triangle, Updated Zero Suspension System, 150mm travel, Forward Geometry, internal removable battery, Boost 12x148mm rear axle, UDH, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers.



  Sizes

  S: 380mm / M: 410mm / ML: 435mm / L: 460mm / XL: 490mm



  Rear shock

  Fox Float-X LV Performance, 185x55mm. Settings: compression 2 positions lever, low-speed rebound, air preload. Trunnion top mount, 30x8mm bottom bushings



  Shock settings

  CS40 compression, RL70 rebound, Rezi B40, LML, 0.2 volume spacer



  Fork

  RockShox ZEB Base Rush RC 29, 160mm, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: low-speed compression, Extl rebound, air preload



  Headset

  Acros custom ZS56/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs without blocklock



  Stem

  Onoff S6 30mm 0º, 6061 forged alloy + CNC, 31.8mm barbore



  Handlebar

  Onoff S6 1.0 7050 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 38mm rise.



  Grips

  Onoff Desert Pro, CNC lock-on, 135mm. L and XL: Thicker size



  Seatpost

  X-Fusion Manic diameter 31.6mm,1X Remote lever, S size: 361x125mm, M size: 425x150mm, ML size: 469x170mm, L size: 521x190mm, XL size: 531x200



  Saddle

  Ergon SM-10



  Front brake

  Sram DB8, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads



  Rear brake

  Sram DB8, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads



  Brake lever

  Sram DB8 Stealth, tool reach adjust, lever pivot bushings



  Rims

  WTB Sportterra Tough,6061 Welded Aluminum, 30mm internal width, tubeless ready, 28 spokes

•

  Spokes

  WTB Straight gauge spokes & black brass locking nipples



  Front hub

  WTB Frequenzy Sport Boost 15x110mm, fully machined aluminum, IS 6 bolts



  Rear hub

  WTB Frequenzy Sport Boost 12x148mm, fully machined aluminum, IS 6 bolts, HG freehub



  Front tire

  Maxxis Assegai 29x2.5WT, tubeless ready, 3C Maxx Grip compound, EXO+ protection, 60TPI, folding bead



  Rear tire

  Maxxis Minion DHR II 29x2.5 WT, tubeless ready, 3C MaxxTerra compound, DD protection, 2x120TPI, folding bead



  Crankset

  E.13 Helix Core E*Spec Plus, All sizes: 160mm



  Rings

  Sram Eagle 34T T-Type, direct mount, steel, CL55



  Chain

  Sram 70 T-Type, 12s Flattop, PowerLock



  Rear derrailleur

  Sram 70 Eagle, T-Type, 12s



  Shift levers

  Sram Trigger 70, 12s, T-Type Actuation



  Casette

  Sram XS-1270, 10-52T, 12s



  Weight

  24,3 kg



  Display

  Kiox 400C / Bosch Mini Remote



  Motor

  Bosch Performance Line CX (25Km/h) SMART SYSTEM (BDU384Y)



  Battery

  Bosch Powertube 800Wh
