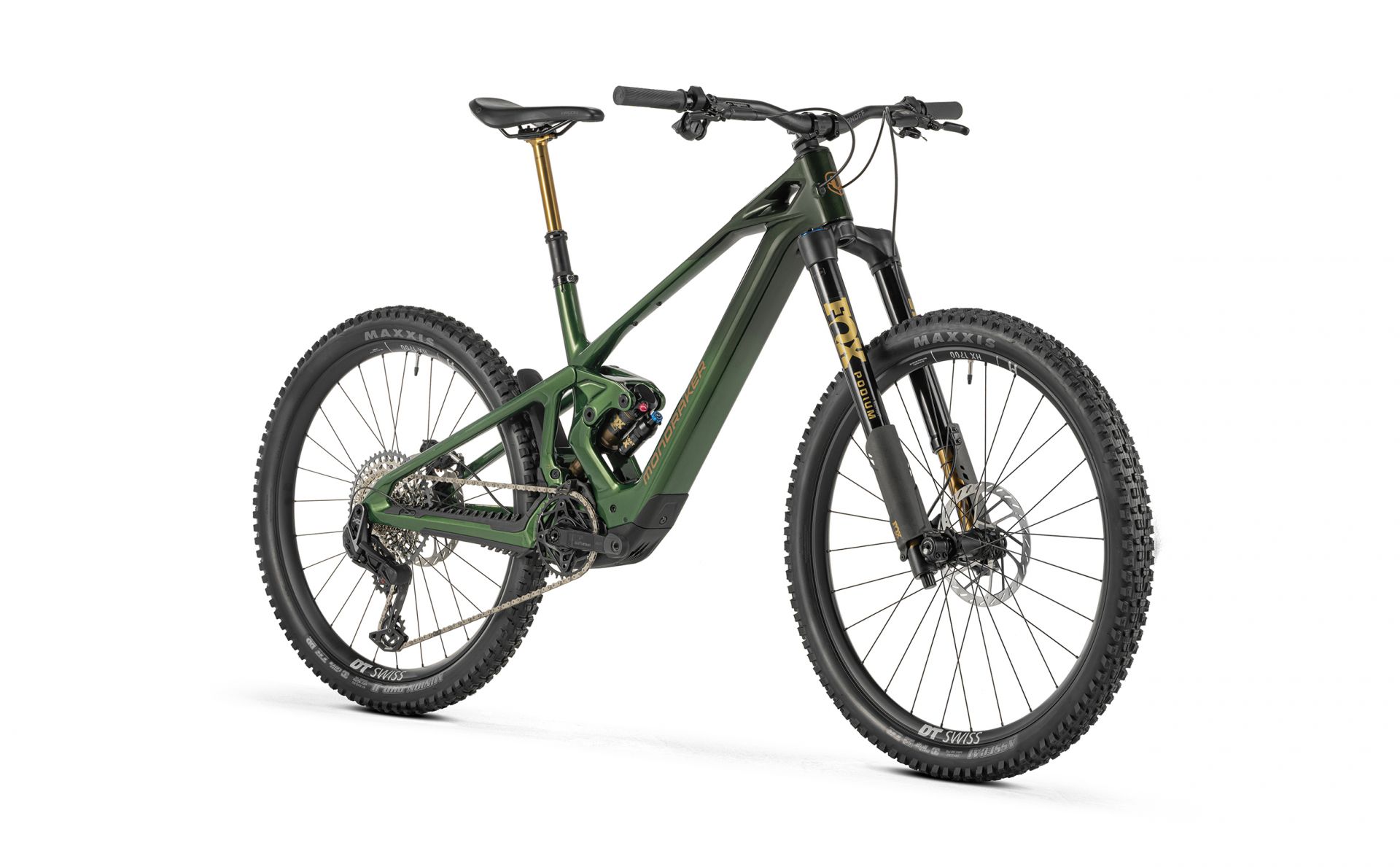

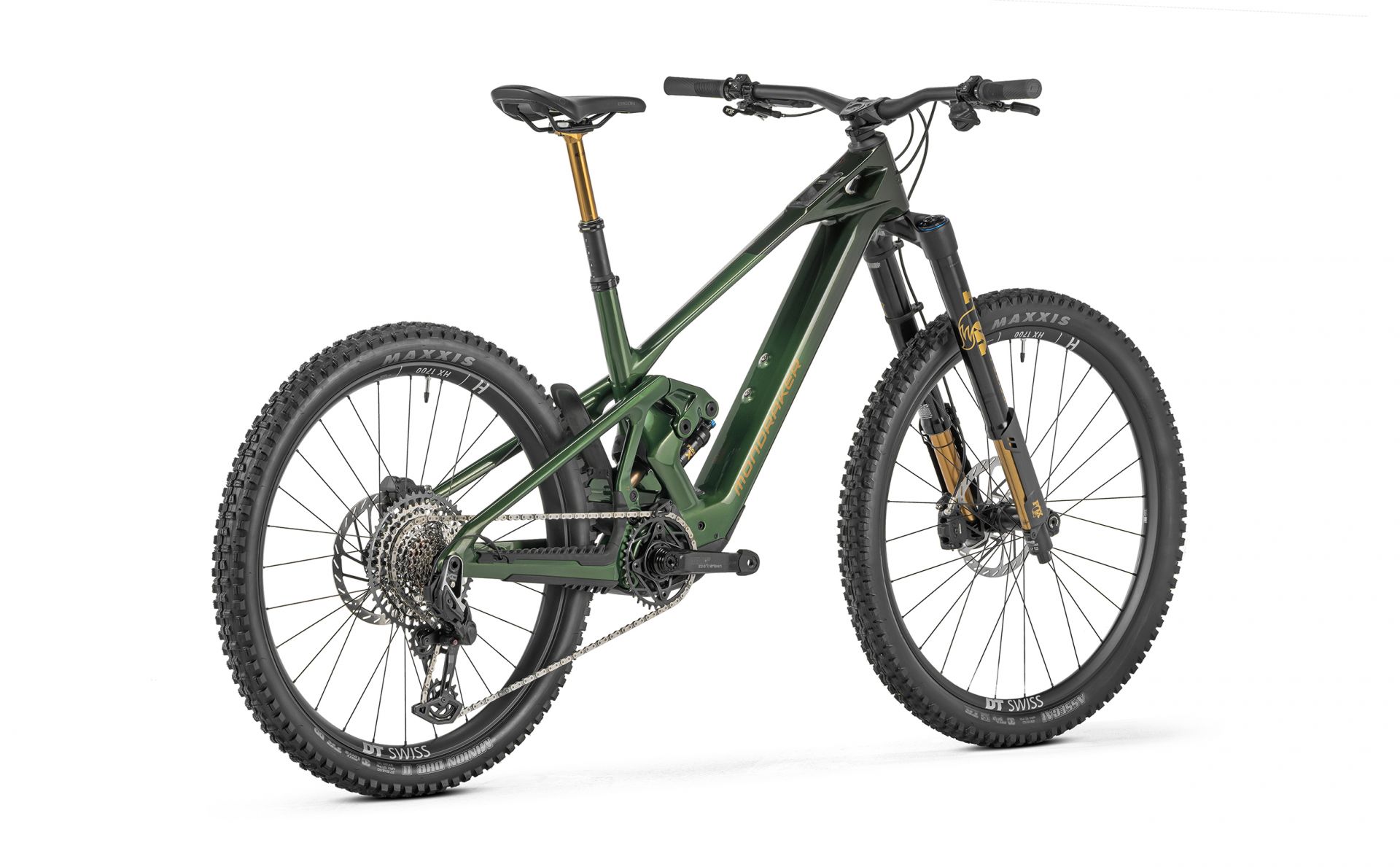

Mondraker Zendit RR S

ZENDIT RR S Hunter Green M/L

•

  Frame

  Zendit Stealth Air full Carbon, Updated Zero Suspension System, 165mm travel, Forward Geometry, internal battery, Boost 12x148mm rear axle, UDH, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers.



  Sizes

  S: 380mm / M: 410mm / ML: 435mm / L: 460mm / XL: 490mm



  Rear shock

  Fox Float X Factory Kashima Evol LV 205x65mm. 2-positions lever compresion (Open/Firm), low-speed compression, low-speed rebound, air preload. Trunnion top mount, 30x8mm bottom bushings.



  Shock settings

  CS 30 compression, 1,1 Bleed, RL50 rebound, Rezi B40, LML, standard MCU, 0 volume spacers



  Fork

  Fox Podium 29 Float GRIP X2 Factory Kashima, 170mm, tapered steerer tube, Boost 20x110mm thru axle, 44mm offset. High and low-speed compression, high and low-speed rebound, air preload.



  Headset

  Acros custom ZS56/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs, without blocklock.



  Stem

  Onoff S9 30mm 0º, Full CNC, 31.8mm barbore.



  Handlebar

  Onoff S9 1.0 Carbon, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 38mm rise.



  Grips

  Onoff Desert Pro, CNC lock-on, 135mm. L and XL: Thicker size.



  Seatpost

  Fox Transfer Factory Kashima internal, adjustable travel, diameter 31.6mm, S size: 95mm -120mm, M size: 125mm -150mm, ML size: 155mm -180mm, L size: 185mm -210mm, XL size: 185mm -210mm



  Saddle

  Ergon SM10 E-Mountain Black.



  Front brake

  Sram Maven Silver, 18 millimeter 4-piston caliper, HS2 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads



  Rear brake

  Sram Maven Silver, 18 millimeter 4-piston caliper, HS2 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads



  Brake lever

  Sram Maven Silver, SwingLink and lever pivot bushings, tools-free reach adjust



  Rims

  DT Swiss Hybrid HX 1700 Spline, 30mm internal width, welded aluminum, tubeless ready, 28 spokes



  Spokes

  DT Swiss Straightpull spokes, DT Hybrid III, black

•

  Front hub

  DT Swiss 350, Boost 20x110mm, IS 6 bolts



  Rear hub

  DT Swiss 350 Classic with 24T Ratchet System, Boost 12x148mm, IS 6 bolts, XD freehub



  Front tire

  Maxxis Assegai 29x2.5WT, tubeless ready, 3C Maxx Grip compound, EXO+ protection, 60TPI, folding bead



  Rear tire

  Maxxis Minion DHR II 27.5x2.5 WT, tubeless ready, 3C MaxxTerra compound, DD protection, 120x2TPI, folding bead



  Crankset

  e*thirteen Helix Race e*spec alloy. All sizes: 155mm



  Rings

  Sram Eagle 36T T-Type, 104BCD, steel, CL55



  Chain

  Sram GX Eagle T-Type, 12s Flattop, w/Powerlock



  Rear derrailleur

  Sram X0 Eagle AXS T-Type, 12s



  Shift levers

  Sram Eagle AXS Pod Controller Rocker Paddle w/discrete clamp, 12s



  Casette

  Sram XS 1275, 10-52T, T-Type, 12s



  Others

  Sram AXS Extension Cord / Avinox 4A Charger



  Weight

  22.9 Kg

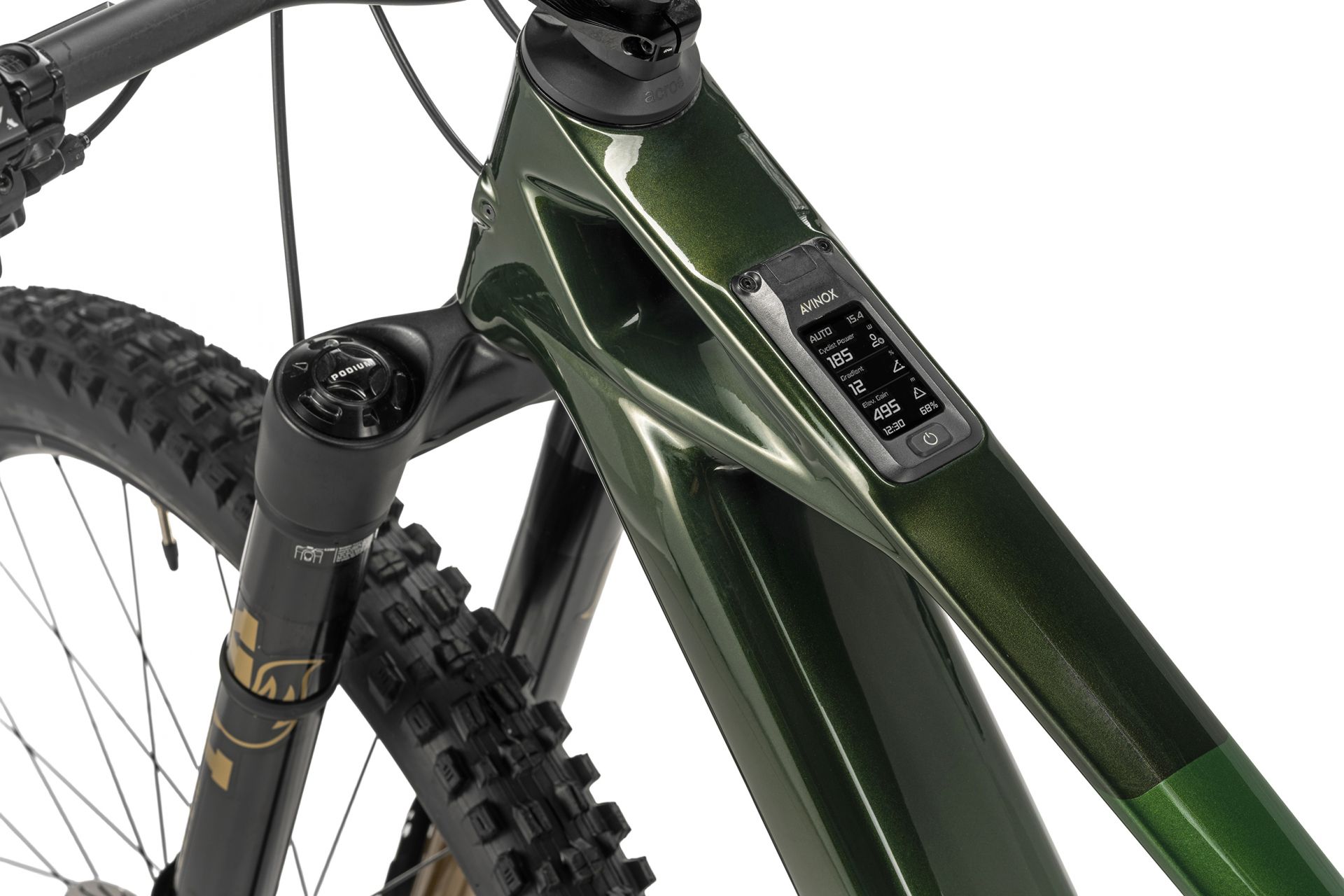

  Display

  Avinox DP100 Display / Avinox BC100 Wireless Controller (L&R)



  Motor

  Avinox M2S



  Battery

  Avinox 800Wh Battery
