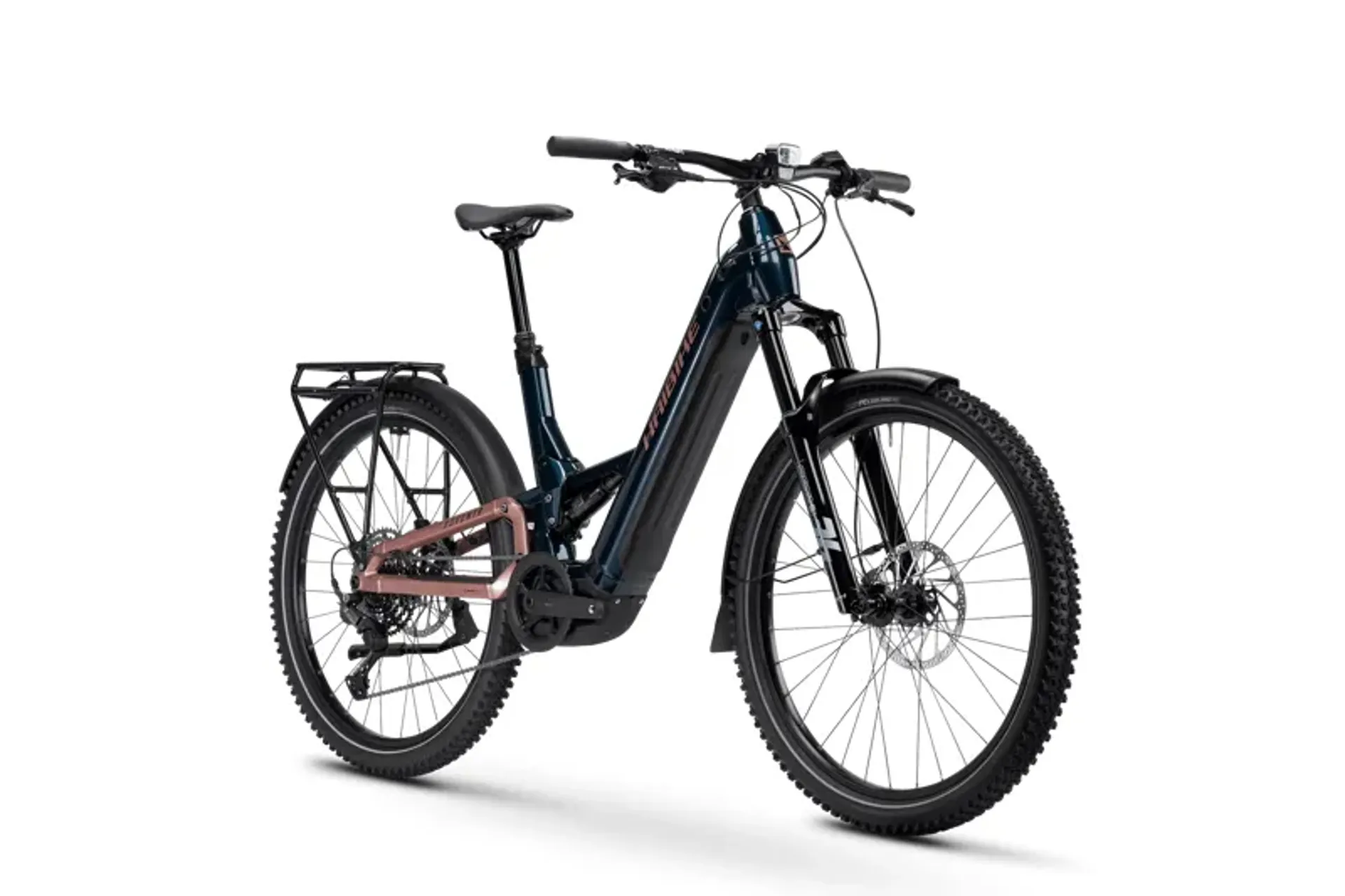

Haibike Adventr 8.5 Low

From city life to wilderness and back again. The HAIBIKE ADVENTR 8.5 bridges the gap between reliable trekking eBike and comfortable full-suspension eMTB. Based on the same frame platform as our off-road ALLTRAIL models, this bike transforms even the dullest commute into a vibrant woodland adventure. The sporty spec helps too: the Bosch Performance Line CX motor powers you through headwinds, the 800Wh battery gives you maximum energy for daily rides, and with 140mm front and 130mm rear travel, this SUV eBike keeps you steady even on rough gravel tracks. Naturally, a sturdy rear rack is included. The perfect choice for urban adventures and spontaneous off-road escapes.

Brake system

• Brake Front Description: Tektro, Hydraulic Disc brake, HD-M535, 4 pistons, resin pad, 203 mm
• Brake Front Mount: Post Mount
• Brake Rear Description: Tektro, Hydraulic Disc brake, HD-M535, 4 pistons, resin pad, 203 mm
• Brake Rear Mount: Post Mount
• Brake Lever Description: Tektro, HD-M535-BL
• Brake Rotor Description: Tektro, TRP RS01E 203 mm, 6 bolt Disc

Carrier

• Carrier Rear Description: Easylife, MIK, System luggage carrier
• Max Weight Carrier Rear: 15 kg

Drivetrain

• Cassette Description: Shimano, CUES CS-LG400-11, HG
• Cassette Teeth: 11-50T
• Chain Description: KMC, Chain, eGlide with EPT Coating 9-11s
• Chain Guide Description: Winning, WI-38L-95 Chainguide
• Crank Arm length: 170
• Crankset Description: Samox, CR-E18 CRNKS + Chainring CR-E15 BDU38 + Bashring
• Crankset Teeth: 38T
• Crankset Type: single
• Derailleur Hanger Description: Glory Wheel, UDH

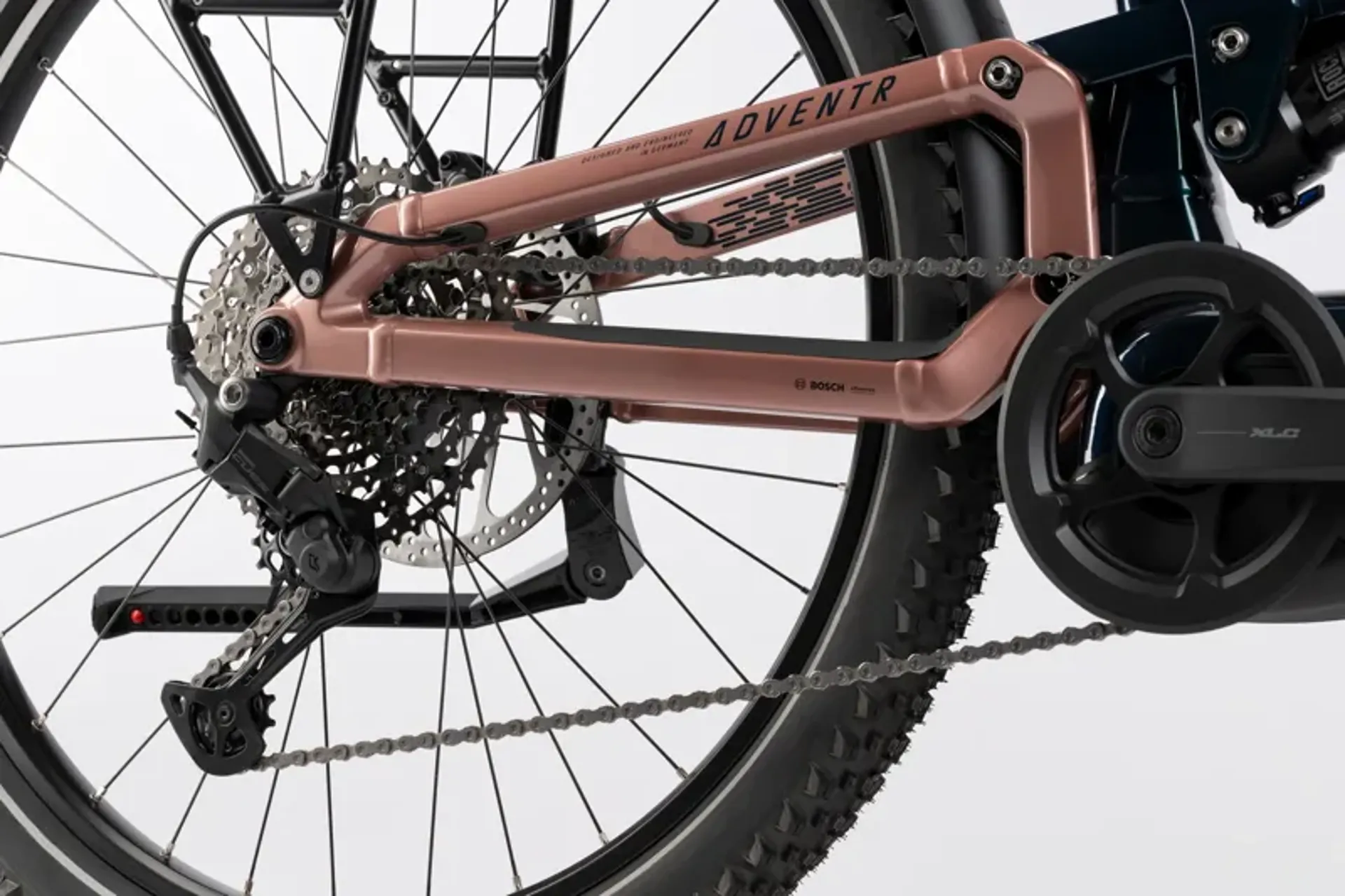

• Derailleur Rear Description: Shimano, CUES RD-U6000 10/11s, Shadow+
• Gear Description: Shimano, Derailleur, CUES
• Number Of Gears: 11
• Pedal Description: XLC, Flat Pedal PD-M29 w/ Reflector + integrated Pins
• Pedal Inclusive: Yes
• Shifter Right Description: Shimano, Triggershift, CUES SL-U6000-11R, Rapidfire+

E-bike components

• Battery Description: Bosch, InTube 800Wh
• Battery Capacity: 800 Wh
• Battery Location: Powertube
• Charger Description: Bosch, Charger 2A 220-240V
• Display Description: Bosch, Purion 200, Purion 200

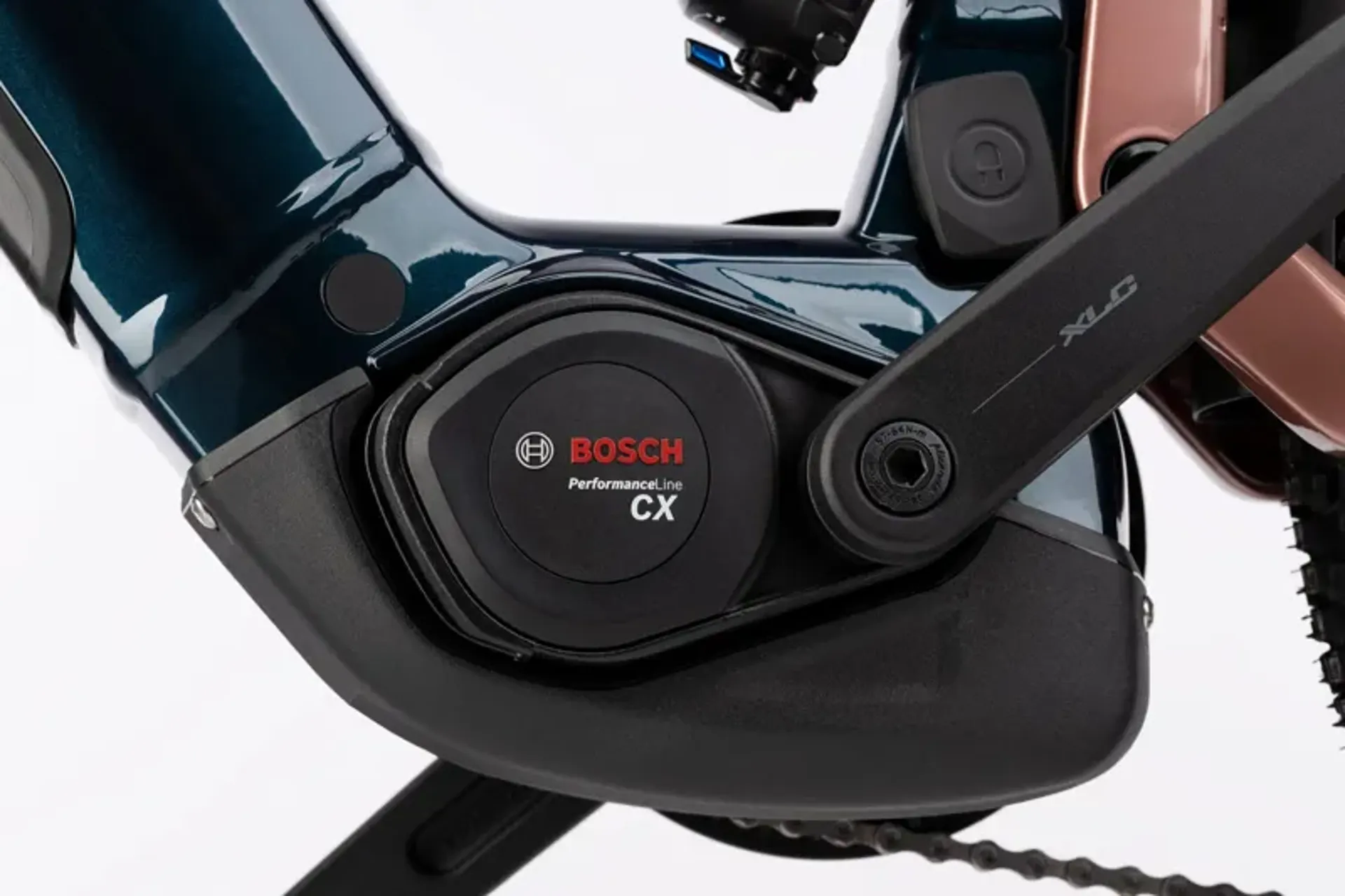

• Motor Description: Bosch, Performance Line CX, Performance Line CX
• Motor Torque [nm]: 85 Nm
• Motor Location: Center

Frame and more

• Framesize:
  • · 49 cm
  • · 45 cm
  • · 40 cm
• Framesize Convection:
  • · L
  • · M
  • · S
• Max loadable weight (KG): 150 kg

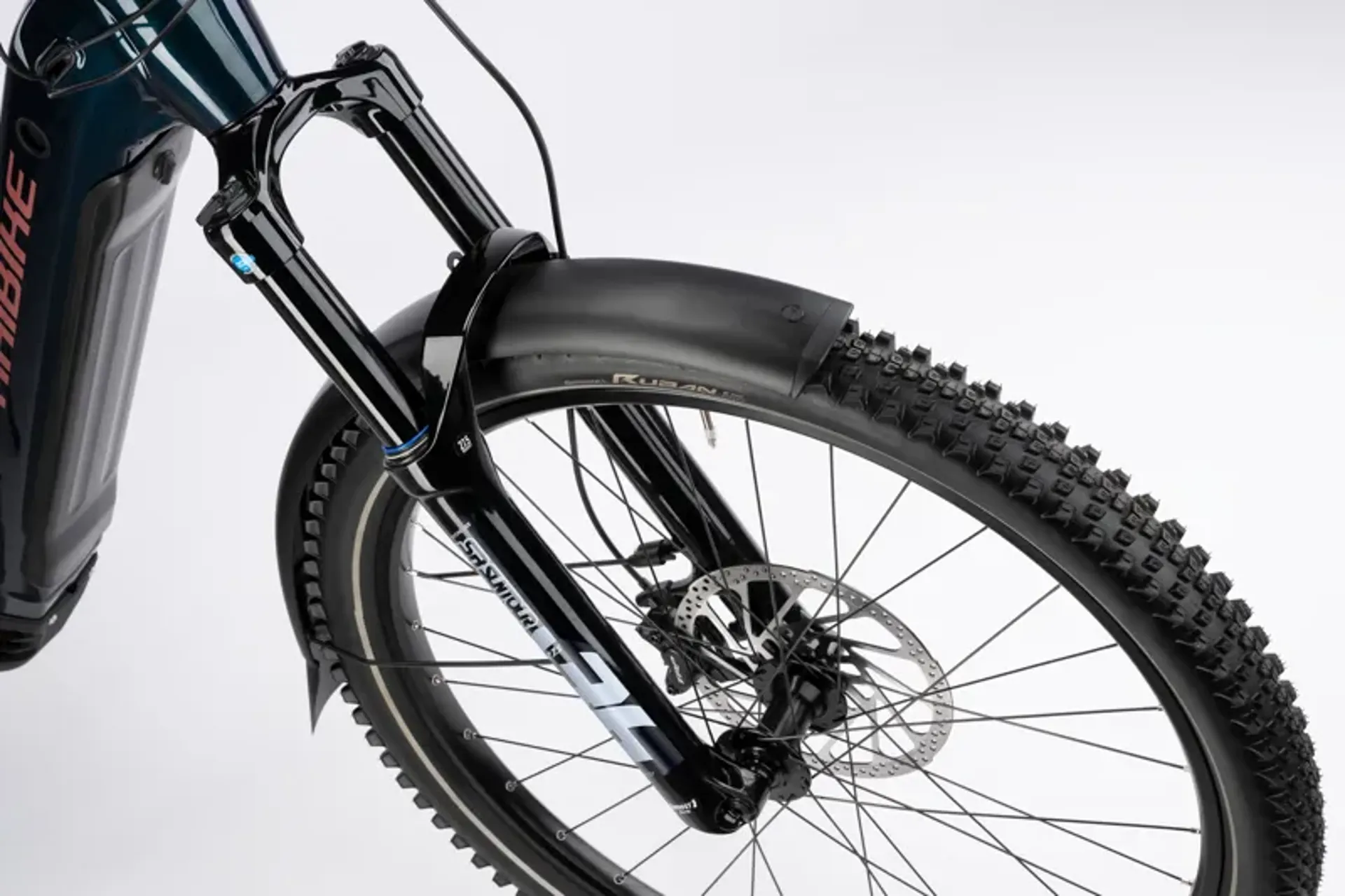

• Front Fork Description: Rockshox, Psylo Silver RC, Crown Adjust., Solo Air, 140 mm
• Front Fork Type: Suspension
• Frame Description: Low, Aluminium, Uni
• Stand Description: XLC, Single, Mooi 18 mm, Max. Length: 333 mm

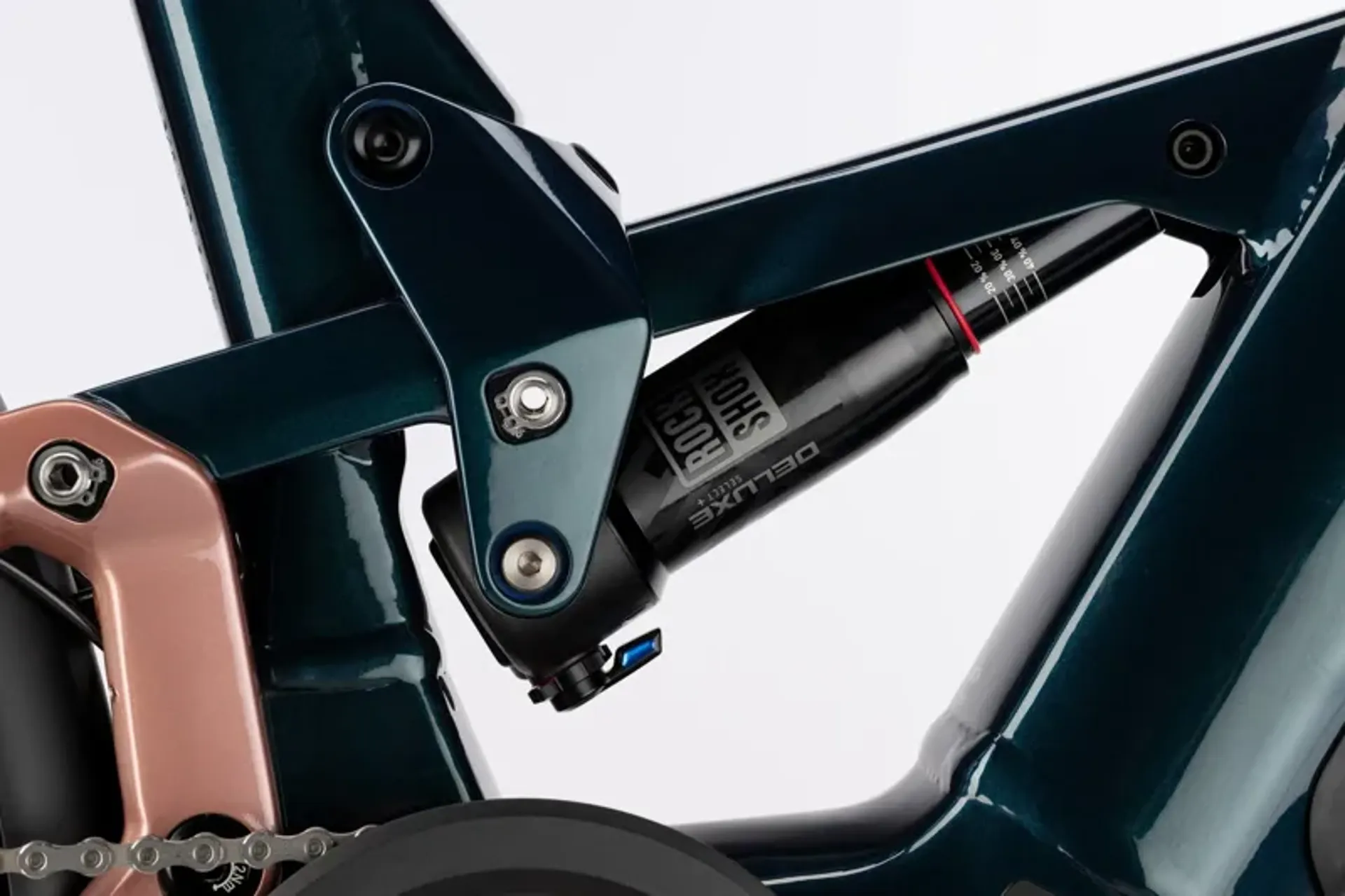

• Shock Description: Rockshox, Deluxe Select R 185x55mm, Trunnion, DebonAir+
• Suspension Type: Fully
• Travel Front: 140 mm
• Travel Rear: 130 mm

Handlebar and Saddle

• Handgrip Description: XLC, MTB Grip Set VLG-1751D2
• Handlebar Description: XLC, Riser Bar, HB-C32, Dia. 31.8 mm, Rise: 25 mm, backsweep 15°
• Handlebar Diameter: 31.8 mm
• Handlebar Material: Aluminium
• Handlebar Rise: 25
• Handlebar Width: 740 mm
• Headset Description: Acros, Semi-integrated, BlockLock 135° ZS56/ZS56
• Saddle Description: XLC, Sport Comfort SA-S11 Steel Rail 155 mm
• Seatpost Description: XLC, Dropperpost, Dropper SP-T21, Dia. 34.9 mm, Travel: 150 mm, 456 mm
• Seatpost Material: Aluminium
• Seatpost Travel (mm):
  • · 150 mm
  • · 125 mm
• Stem Description: XLC, ST-M36, Dia. 31.8 mm, L: 70 mm, A-Head
• Stem Length: 70 mm

Lighting

• Brake Light: No
• Front Light Description: Trelock, Lighthammer LS800 60 Lux, 6-12V
• Rear Light Description: Supernova, TL3 Z, 12V, 1,5W

Wheels and wheel components

• Hub Front Description: XLC, HF-M15 Boost 15x110 mm, 32H, 6 bolt Disc
• Hub Rear Description: XLC, HR-M15 Boost 12x148 mm, 32H, 6 bolt Disc, HG
• Mudguard Front Description: Curana, Apollo 75, extra matte black
• Mudguard Rear Description: Curana, Apollo 75, extra matte black + rear light
• Rim Description: XLC, WR-M17 Disc 25/584 32H 6,5 mm Valve
• Rim Rear Description: XLC, WR-M17 Disc 25/584 32H 6,5 mm Valve
• Spoke Description: Sapim, Race Dia. 2.0, J-Bend
• Tyre Description: XLC, VT-T45 Toorak, 60-584
• Tyre Rear Description: XLC, VT-T45 Toorak
• Wheelsize Description: 27.5, 27.5
