Call 01983 303322 or drop into our shop to try this Mondraker Prime S for size.

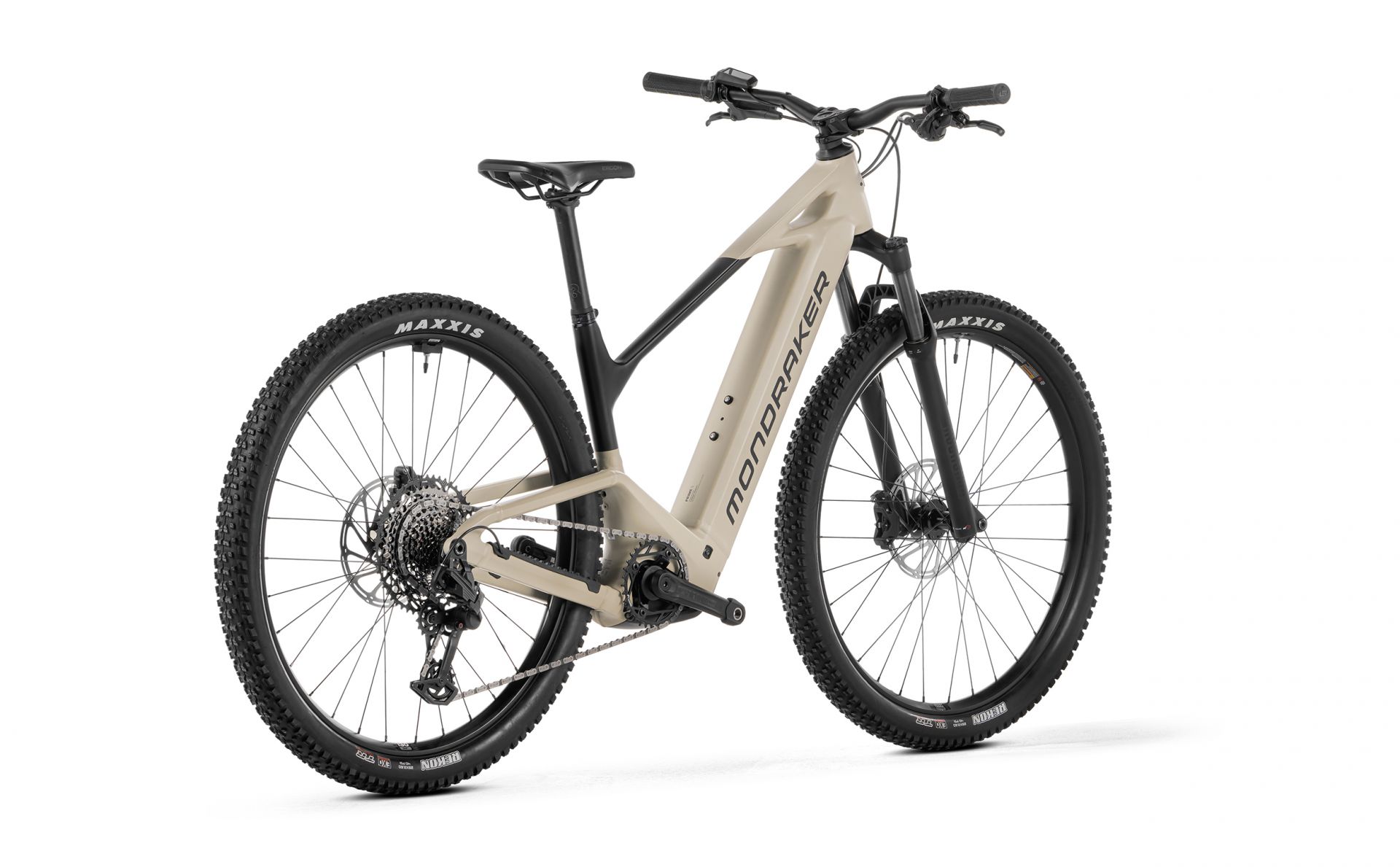

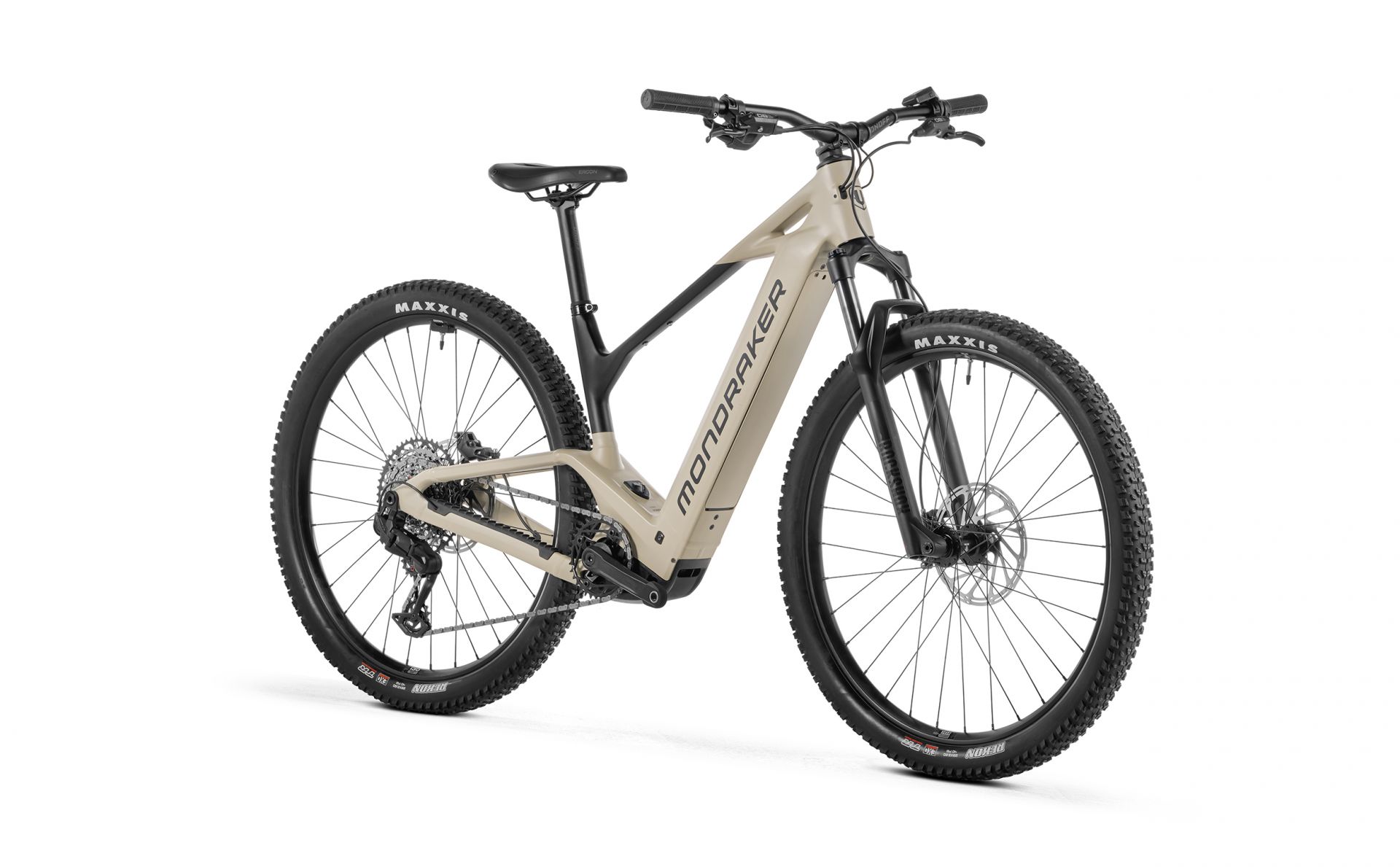

Mondraker Prime S

New

£3,799.99

Hard tail mountain bikes
Electric bikes
Mountain bikes

Technical specs

Frame

Prime Xtralite 6061 Full Butted Alloy, Forward Geometry, intenal removable battery, tapered head tube, Boost 12x148mm rear axle, UDH,

Sizes

S: 370mm / M: 400mm / ML: 430mm / L: 470mm / XL: 510mm
Fork

RockShox Recon Silver RL 29, 120mm, Motion control, Solo Air, tapered steerer tube, Boost 15x110mm axle, 32mm steel stanchions, 42mm offset. Settings: compression adjustment at low-speed to lock, rebound, air preload

Headset

Acros custom ZS56/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs without blocklock
Stem

Onoff S3 30mm 0º, 6061 forged alloy, 31.8mm barbore

Handlebar

Onoff S3 1.0 6061 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 38mm rise.
Grips

Onoff Beehive, 1lock-on, 135mm

Seatpost

Onoff S3 0-R, diameter 31.6mm, length 400mm
Saddle

Ergon SMC10 Gel

Front brake

Sram DB6, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
Rear brake

Sram DB6, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads

Brake lever

Sram DB6, tool reach adjust, lever pivot bushings
Rims

WTB Sportterra Tough,6061 Welded Aluminum, 30mm internal width, tubeless ready, 28 spokes

Spokes

WTB Straight gauge spokes & black brass locking nipples
Front hub

WTB Frequenzy Sport Boost 15x110mm, fully machined aluminum, IS 6 bolts

Rear hub

WTB Frequenzy Sport Boost 12x148mm, fully machined aluminum, IS 6 bolts, HG freehub
Front tire

Maxxis Rekon 29x2.6, tubeless ready, dual compound, EXO protection, 60TPI, folding bead

Rear tire

Maxxis Rekon 29x2.6, tubeless ready, dual compound, EXO protection, 60TPI, folding bead
Crankset

E.13 Helix Core E*Spec Plus, All sizes: 160mm

Rings

Sram Eagle 34T T-Type, direct mount, steel, CL55
Chain

Sram 70 T-Type, 12s Flattop, PowerLock

Rear derrailleur

Sram 70 Eagle, T-Type, 12s
Shift levers

Sram Trigger 70, 12s, T-Type Actuation

Casette

Sram XS-1270, 10-52T, 12s
Weight

23,5 kg

Display

Purion 200
Motor

Bosch Performance Line CX (25Km/h) SMART SYSTEM (BDU384Y)

Battery

Bosch Powertube 800Wh
