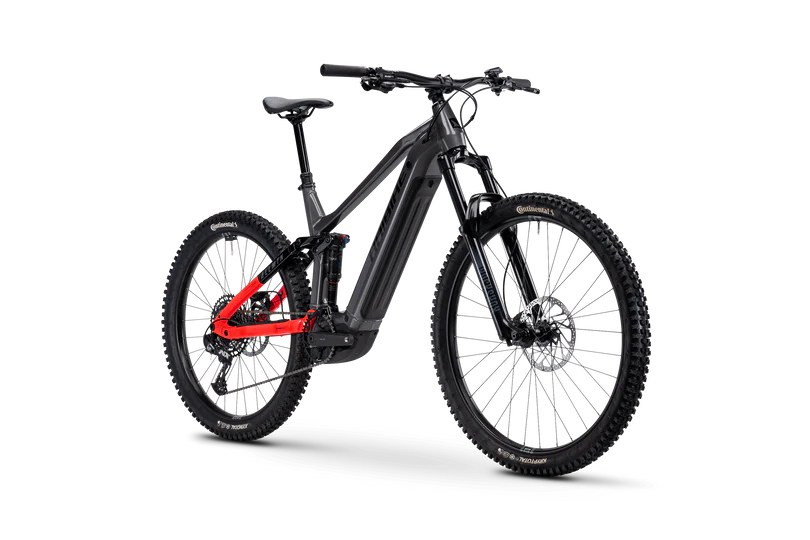

Haibike ALLMTN 4

A rush of altitude and valley flow in one ride. Our HAIBIKE ALLMTN 4 bursts with riding fun – even when heading up high. That’s why we’ve equipped this all-mountain fully with a specially developed aluminium frame that strikes the perfect balance between weight saving, comfort and stiffness with its distinctive design. On top of that comes a strong component mix: the powerful Bosch Performance CX drive system with 800Wh battery and optional range extender lets you enjoy even long mountain rides without limits. Thanks to 160mm front and 150mm rear travel, you can go full throttle on the descents. And with SRAM gear components, you’ll always be in the right gear. In short: the ideal eMTB for rides where alpine thrills and downhill fun go hand in hand.

Brake system

• Brake Front Description: Sram, Hydraulic Disc brake, DB8 Stealth, 4 pistons, 200 mm
• Brake Front Mount: Post Mount
• Brake Rear Description: Sram, Hydraulic Disc brake, DB8 Stealth, 4 pistons, 203 mm
• Brake Rear Mount: Post Mount
• Brake Lever Description: Sram, DB8 Stealth-BL
• Brake Rotor Description: Sram, DB Rotor Centerline 200 / 203 mm, 6 bolt Disc

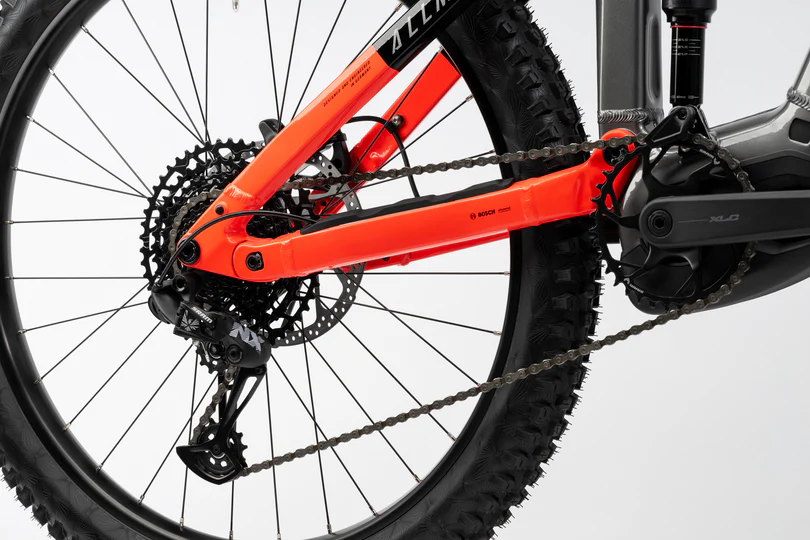

Drivetrain

• Cassette Description: Sram, XS-1270 Eagle T-Type, HG
• Cassette Teeth: 10-52T
• Chain Description: Sram, Chain, Eagle 70 T-Type 12s
• Chain Guide Description: Winning, WI-38L-95 Chainguide
• Crank Arm length: 160
• Crankset Description: XLC, CR-E18 CRNKS + SRAM CR T-Type Bosch DU38, DM
• Crankset Teeth: 36T
• Crankset Type: single
• Derailleur Rear Description: Sram, Eagle 70 T-Type 12s
• Gear Description: Sram, Derailleur
• Number Of Gears: 12
• Pedal Description: XLC, Flat Pedal PD-M29 w/ Reflector + integrated Pins
• Pedal Inclusive: Yes
• Shifter Right Description: Sram, Triggershift, Eagle 70 T-Type Single Click Trigger

E-bike components

• Battery Description: Bosch, InTube 800Wh
• Battery Capacity: 800 Wh
• Battery Location: Powertube
• Charger Description: Bosch, Charger 2A 220-240V
• Display Description: Bosch, Purion 200, Purion 200

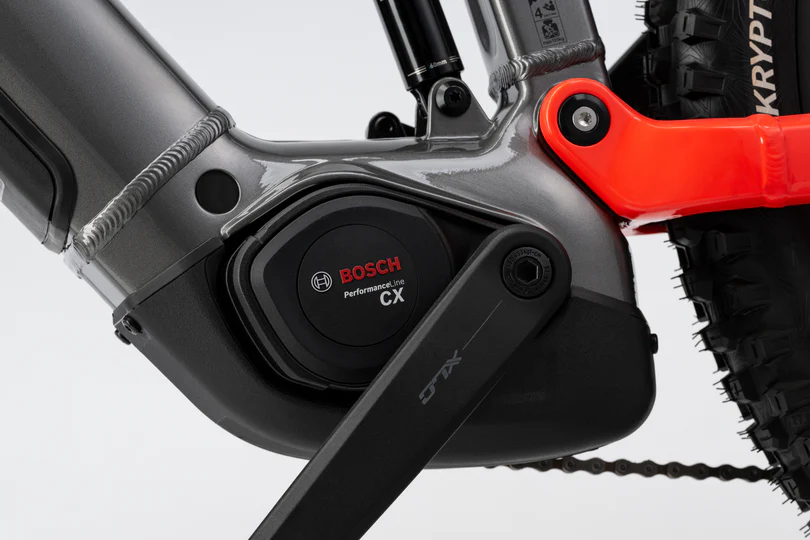

• Motor Description: Bosch, Performance Line CX, Performance Line CX
• Motor Torque [nm]: 85 Nm
• Motor Location: Center

Frame and more

• Framesize:
  • · 41 cm
  • · 44 cm
  • · 47 cm
  • · 49 cm
• Framesize Convection:
  • · S
  • · M
  • · L
  • · XL
• Max loadable weight (KG): 135 kg

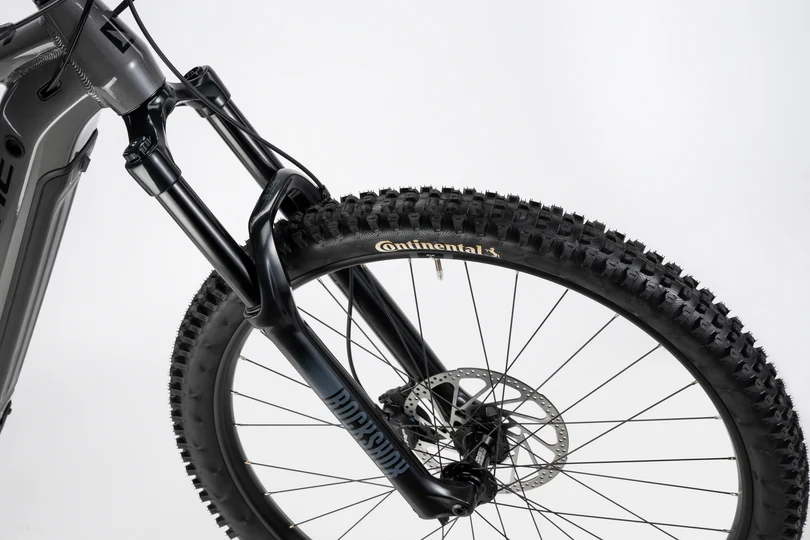

• Front Fork Description: Rockshox, Psylo Gold RC, Crown Adj, DebonAir 160 mm
• Front Fork Type: Suspension
• Frame Description: High, Aluminium, Uni

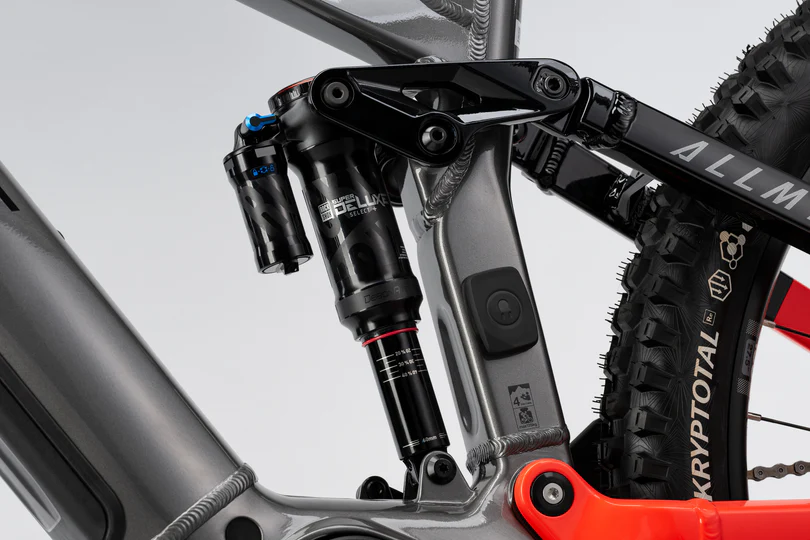

• Shock Description: Rockshox, Deluxe Select R 205x65mm, Trunnion, DebonAir
• Suspension Type: Fully
• Travel Front: 160 mm
• Travel Rear: 150 mm

Handlebar and Saddle

• Handgrip Description: XLC, GR-S34 Gravity Grip
• Handlebar Description: XLC, Riser Bar, HB-M34, Dia. 35 mm, Rise: 20 mm, backsweep 9°
• Handlebar Diameter: 35 mm
• Handlebar Material: Aluminium
• Handlebar Rise: 20
• Handlebar Width: 800 mm
• Headset Description: Acros, Semi-integrated, BlockLock 135° AZX-220-R4 ZS44/ZS56
• Saddle Description: XLC, SA-S10 143 mm Sport
• Seatpost Description: XLC, Dropperpost, Dropper SP-T21, Dia. 34.9 mm, Travel: 125 mm, 399 mm
• Seatpost Material: Aluminium
• Seatpost Travel (mm):
  • · 125 mm
  • · 150 mm
  • · 170 mm
• Stem Description: XLC, ST-M50, Dia. 35 mm, L: 40 mm, A-Head
• Stem Length: 40 mm

Lighting

• Brake Light: No

Wheels and wheel components

• Hub Front Description: XLC, HF-M15 Boost 15x110 mm, 32H, 6 bolt Disc
• Hub Rear Description: XLC, HR-M15 Boost 12x148 mm, 32H, 6 bolt Disc, HG
• Rim Description: XLC, WR-M39 Tryp EVO Disc 30/622 32H 6,5 mm Valve
• Rim Rear Description: XLC, WR-M37 Tryp EVO Disc 30/584 32H 6,5 mm Valve
• Spoke Description: Sapim, Race Dia. 2.0, J-Bend
• Tyre Description: Continental, Kryptotal-Fr, Trail Endurance, TR, 60-622
• Tyre Rear Description: Continental, Xynotal, Trail Endurance, TR
• Wheelsize Description: 29, 27.5
