Home > Bikes > Mountain bikes > Electric bikes > Mountain electric bikes > Mondraker mountain bikes

All bikes shown on this web site are currently in stock unless otherwise stated.
Call 01983 303322 or drop into our shop to try this Mondraker Prime X for size.

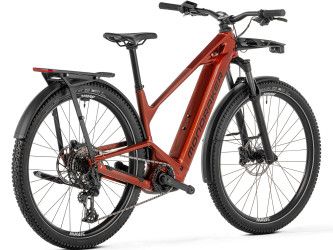

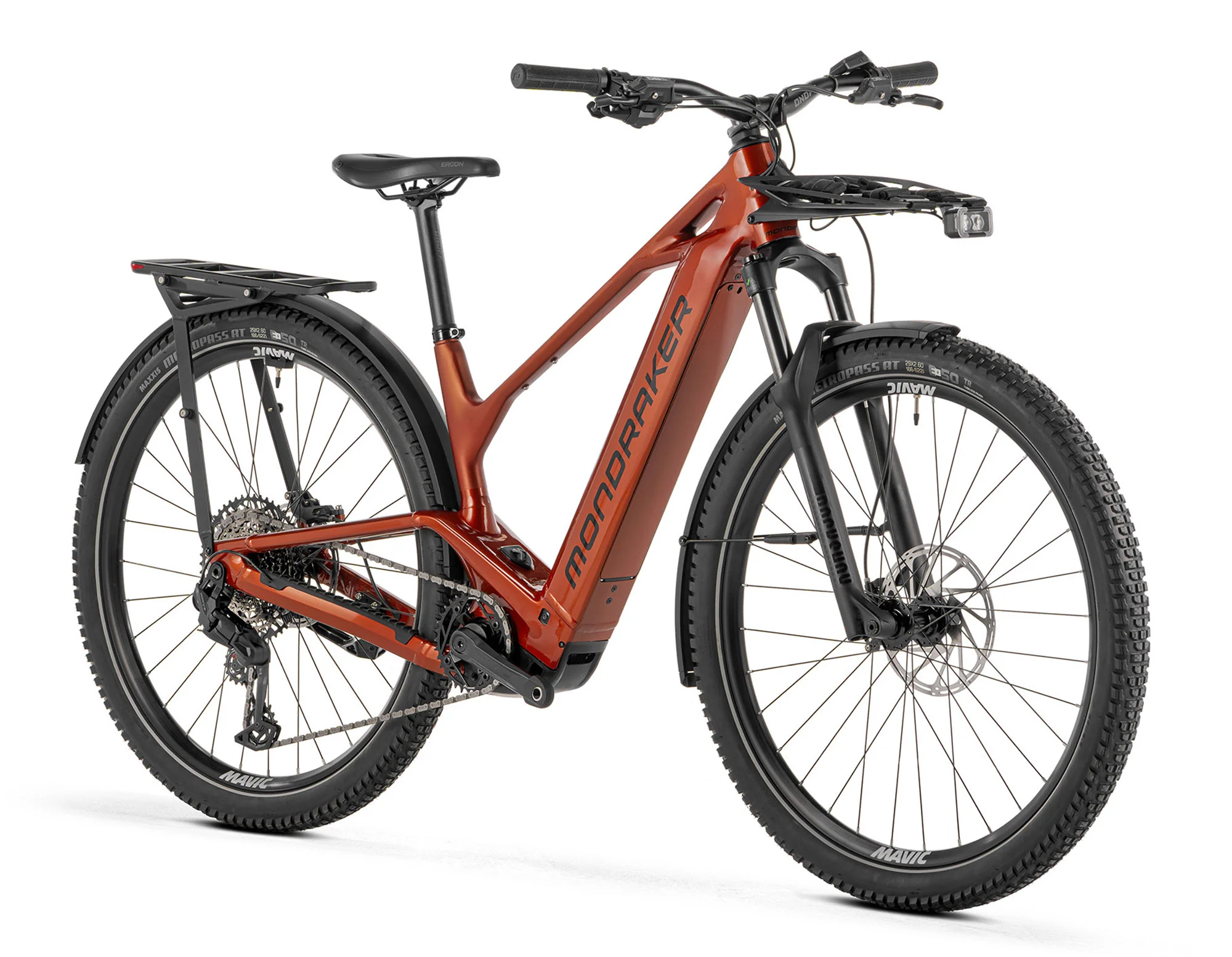

Mondraker Prime X

New

£3,999.99

Mountain bikes
Electric bikes
Hard tail mountain bikes

Technical specs

Frame

Prime Xtralite 6061 Full Butted Alloy, Forward Geometry, intenal removable battery, tapered head tube, Boost 12x148mm rear axle, UDH,

Sizes

S: 370mm / M: 400mm / ML: 430mm / L: 470mm / XL: 510mm
Fork

RockShox Recon Silver RL 29, 120mm, Motion control, Solo Air, tapered steerer tube, Boost 15x110mm axle, 32mm steel stanchions, 42mm offset. Settings: compression adjustment at low-speed to lock, rebound, air preload

Headset

Acros custom ZS56/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs without blocklock
Stem

Onoff S3 30mm 0º, 6061 forged alloy, 31.8mm barbore

Handlebar

Onoff S3 1.0 6061 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 38mm rise.
Grips

Onoff Beehive, 1lock-on, 135mm

Seatpost

Onoff S3 0-R, diameter 31.6mm, length 400mm
Saddle

Ergon SF10 Gel

Front brake

Sram DB6, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
Rear brake

Sram DB6, 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads

Brake lever

Sram DB6, tool reach adjust, lever pivot bushings
Rims

Mavic E-Access XR27, 29 Boost 27mm internal width, tubeless ready, 28 spokes

Spokes

Mavic 28 Reinforced spokes lacing
Front hub

Mavic, Boost 15x110mm, IS 6 bolts

Rear hub

Mavic, Boost 12x148mm, IS 6 bolts HG Reinforced freehub
Front tire

Maxxis Metropass AT 29x2.6, single compound, 60TPI, MaxxProtect /EXO Reflective Stripe, Tubeless ready, wire bead,

Rear tire

Maxxis Metropass AT 29x2.6, single compound, 60TPI, MaxxProtect /EXO Reflective Stripe, Tubeless ready, wire bead,
Crankset

E.13 Helix Core E*Spec Plus, All sizes: 160mm

Rings

Sram Eagle 34T T-Type, direct mount, steel, CL55
Chain

Sram 70 T-Type, 12s Flattop, PowerLock

Rear derrailleur

Sram 70 Eagle, T-Type, 12s
Shift levers

Sram Trigger 70, 12s, T-Type Actuation

Casette

Sram XS-1270, 10-52T, 12s
Others

Alloy Front carrier with front light mount, Max load: 10kg, Front light: 150LUX output DC 6-12V, waterproof Alloy cage. Spare Front ligth plastic mount, Alloy Rear carrier MIK profile and MIK stud ready, Max load: 25kg. KS40 Kickstand, MDK Urban pedals

Weight

26,9 kg
Display

Purion 200

Motor

Bosch Performance Line CX (25Km/h) SMART SYSTEM (BDU384Y)
Battery

Bosch Powertube 800Wh
